Product Description
CQF Specification
| Model | In/out (diameter) | Hose connection | Maximum output | Standard output | Motor | |||||
| Inlet | Outlet | Inlet | Outlet | Flow | Head | Flow | Head | Power | Voltage | |
| (mm) | (mm) | (mm) | (mm) | (L/min) | (m) | (L/min) | (m) | (KW) | (V) | |
| CQF32-25-115 | 32X25 | / | / | 150 | 16 | 120 | 11 | 0.55 | 220/380 | |
*Union interface and flanged interface are available upon request. Liquid temperature range: 0-80℃(PP) 0-100℃ (PVDF). Suitable for specific gravity below 1.3 (specify when ordering, should the gravity be higher).

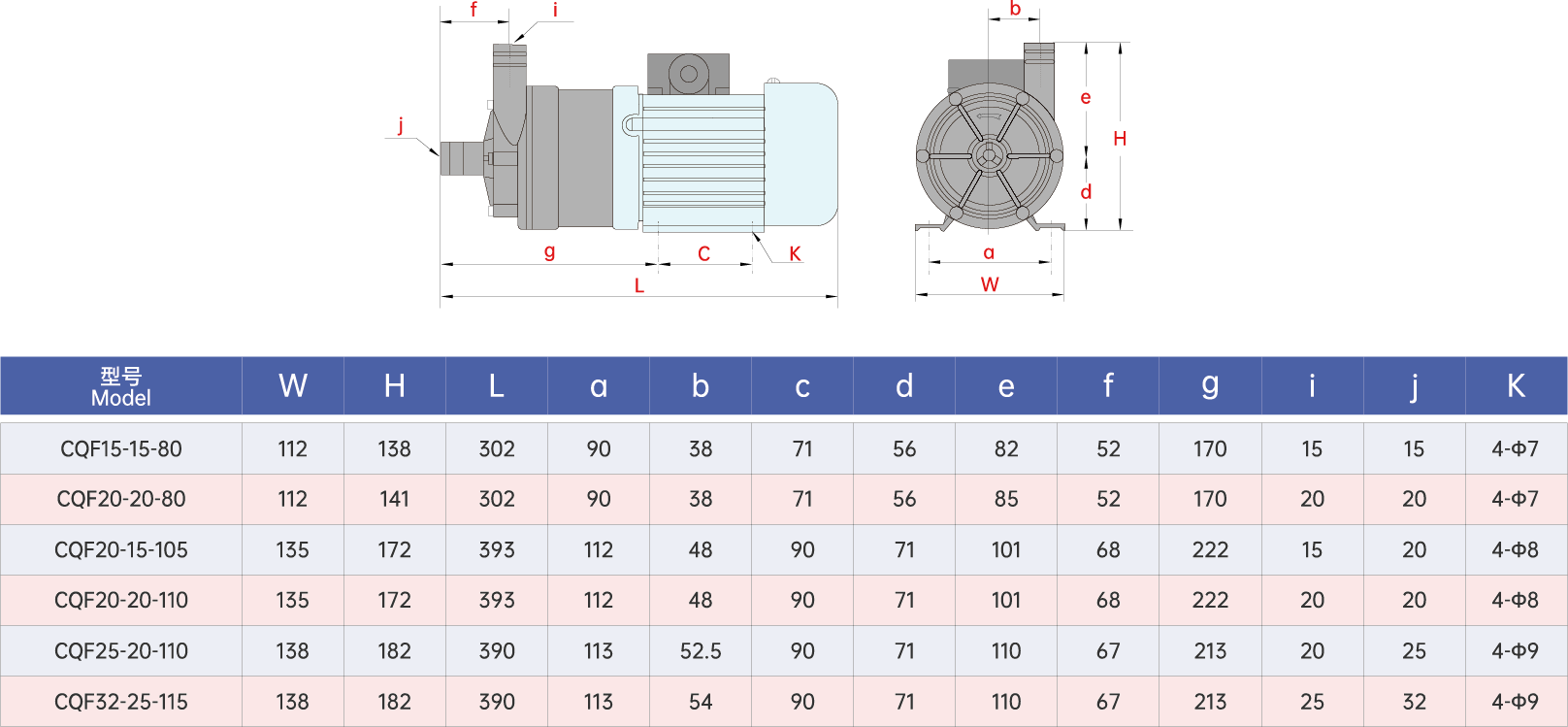

Installing Dimensions

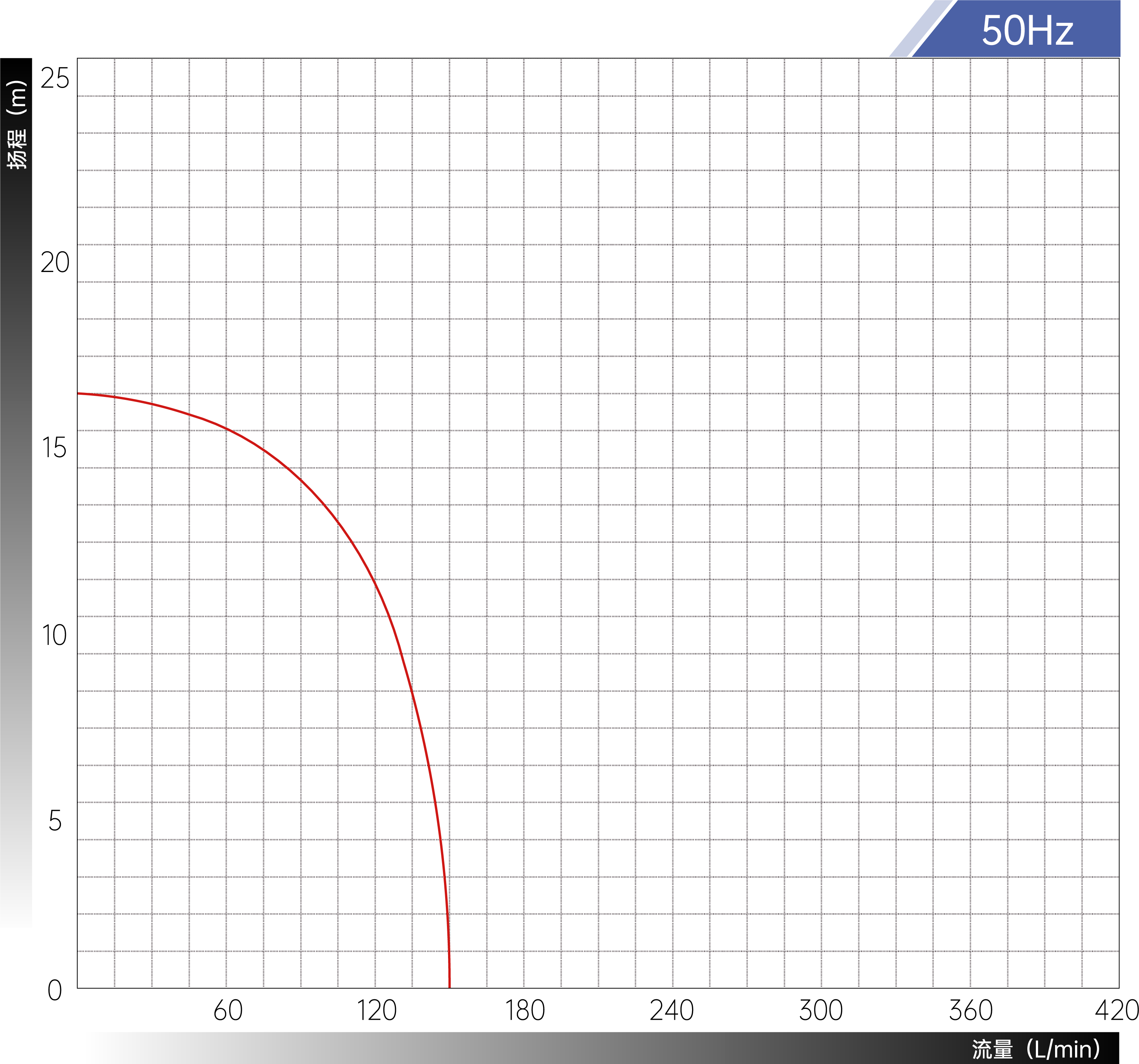

Performance Chart
The CQF32-25-115 acid/alkali-resistant magnetic drive pump delivers high-flow, leak-free transfer for aggressive chemicals. Engineered with reinforced polypropylene wetted parts and corrosion-resistant internals, it safely handles acids, solvents, and caustics up to 90°C.
Key Advantages:
32m³/h high-flow capacity
25m max head pressure
Zero-leak sealless design
Modular maintenance (no pipe cutting)
Ideal for chemical plants, industrial wastewater, and PCB manufacturing. The CQF32-25-115 reduces downtime with heavy-duty bearings and tool-free component access. Achieve 35% energy savings versus traditional pumps with guaranteed corrosion resistance.
