Product Description
CQF Specification
| Model | In/out (diameter) | Hose connection | Head output | Standard output | Motor | |||||
| Inlet | Outlet | Inlet | Outlet | Flow | Head | Flow | Head | Power | Voltage | |
| (mm) | (mm) | (mm) | (mm) | (L/min) | (m) | (L/min) | (m) | (KW) | (V) | |
| CQF25-20-110 | 25X20 | 33 | 26 | 130 | 15 | 105 | 10 | 0.55 | 220/380 | |
*Union interface and flanged interface are available upon request. Liquid temperature range: 0-80℃(PP) 0-100℃ (PVDF). Suitable for specific gravity below 1.3 (specify when ordering, should the gravity be higher).

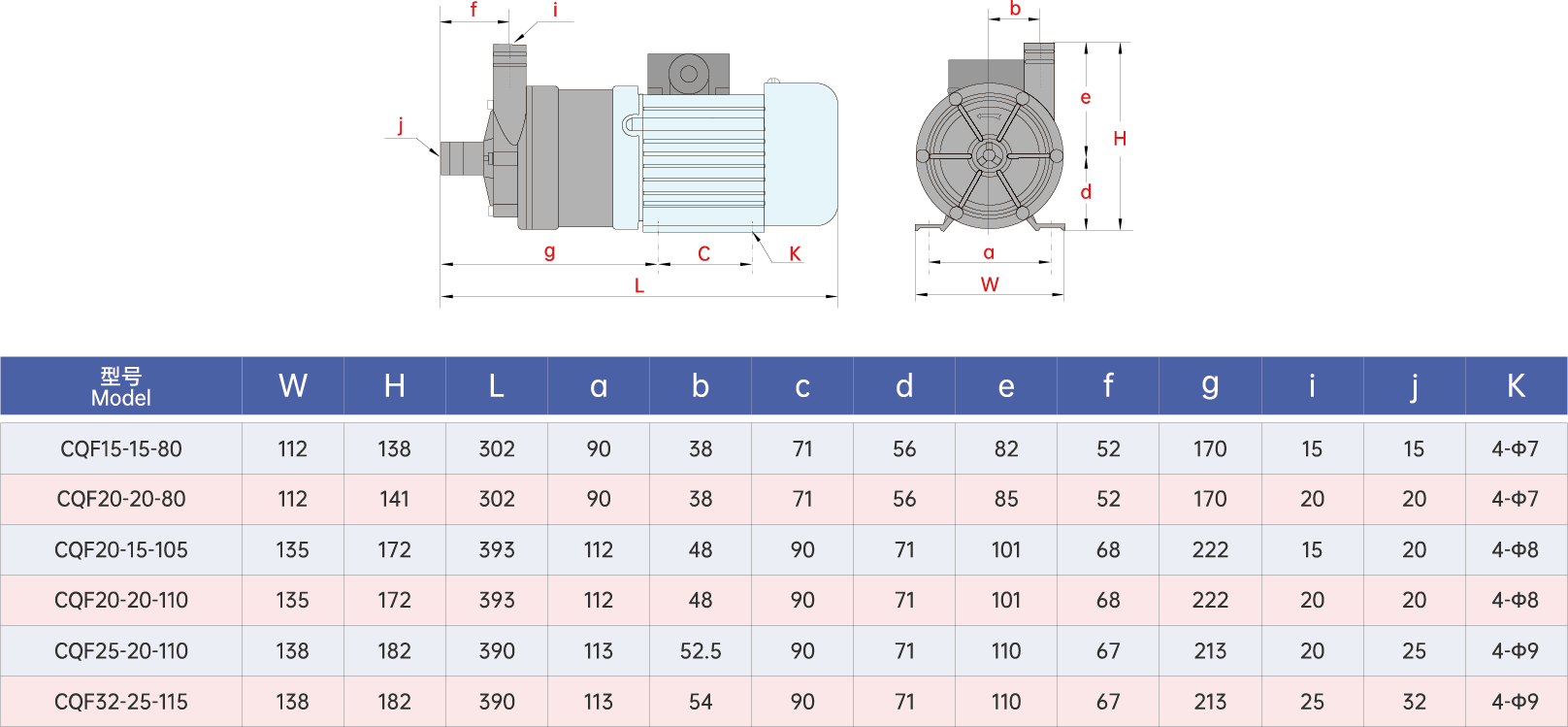

Installing Dimensions
Performance Chart

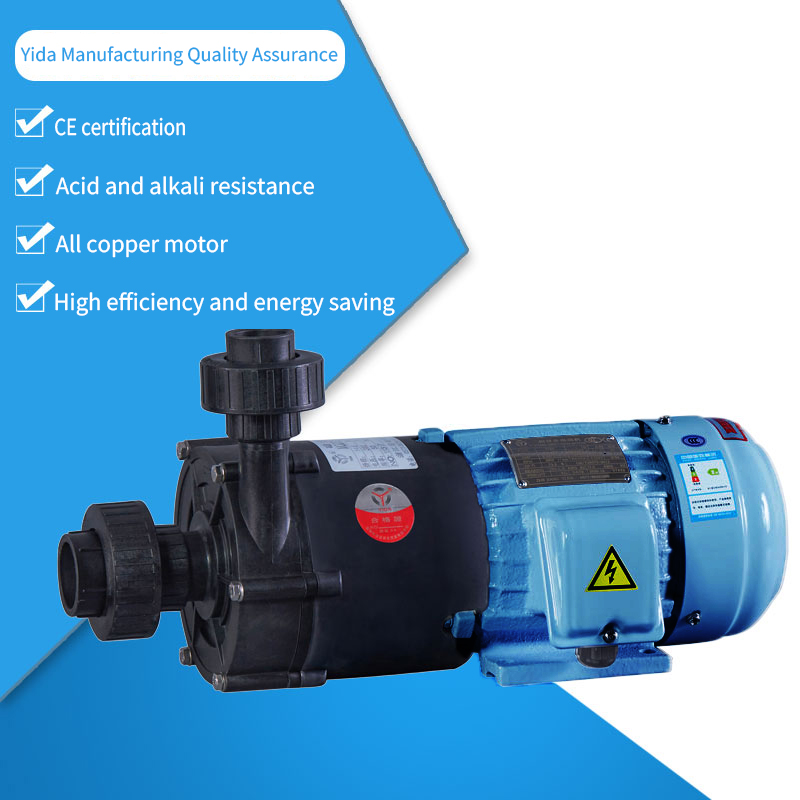

The CQF25-20-110 magnetic drive pump delivers leak-free transfer of aggressive acids, alkalis, and solvents up to 90°C. Engineered with reinforced polypropylene wetted parts and advanced corrosion-resistant internals, this sealless pump eliminates contamination risks and maintenance costs. Its optimized hydraulic design reduces energy consumption while achieving high-head performance (22m). Modular components enable quick in-line servicing without pipe disassembly. Ideal for chemical processing, wastewater treatment, and pharmaceutical applications. Choose the CQF25-20-110 for reliable, zero-leak chemical transfer with reduced lifecycle costs.
