Product Description
CQF Specification
| Model | In/out (diameter) | Hose connection | Head output | Standard output | Motor | |||||
| Inlet | Outlet | Inlet | Outlet | Flow | Head | Flow | Head | Power | Voltage | |
| (mm) | (mm) | (mm) | (mm) | (L/min) | (m) | (L/min) | (m) | (KW) | (V) | |
| CQF20-20-110 | 20X20 | 26 | 26 | 120 | 14.5 | 92 | 10 | 0.37 | 220/380 | |
*Union interface and flanged interface are available upon request. Liquid temperature range: 0-80℃(PP) 0-100℃ (PVDF). Suitable for specific gravity below 1.3 (specify when ordering, should the gravity be higher).

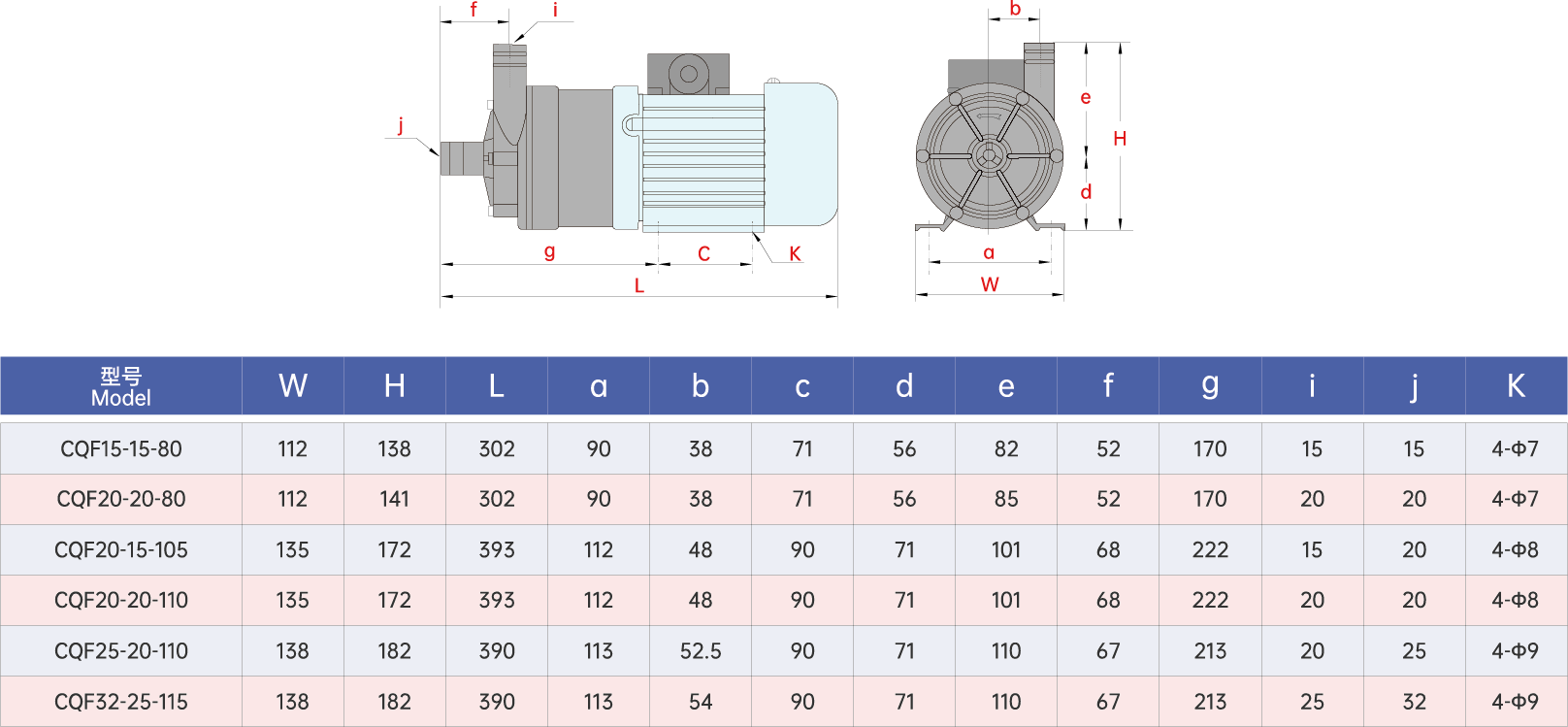

Installing Dimensions
Performance Chart
The CQF20-20-110 acid/alkali-resistant magnetic drive pump delivers robust, leak-free chemical transfer for demanding industrial applications. Its sealless design eliminates shaft seals – the primary failure point – ensuring zero leakage when handling aggressive acids, alkalis, and solvents up to 90°C.
Featuring reinforced polypropylene wetted parts and corrosion-resistant internals, the pump withstands highly corrosive media. The optimized hydraulic design achieves exceptional head pressure (18m) while reducing energy consumption. Modular construction enables rapid maintenance without pipe disconnection.
Ideal for chemical processing, wastewater systems, and slurry transfer, the CQF20-20-110 combines safety, durability, and operational efficiency.
