Product Description
CQF Specification
| Model | In/out (diameter) | Hose connection | Maximum output | Standard output | Motor | |||||
| Inlet | Outlet | Inlet | Outlet | Flow | Head | Flow | Head | Power | Voltage | |
| (mm) | (mm) | (mm) | (mm) | (L/min) | (m) | (L/min) | (m) | (KW) | (V) | |
| CQF25-25-115 | 25X25 | 33 | 33 | 200 | 17 | 140 | 12 | 0.75 | 380 | |
*Union interface and flanged interface are available upon request. Liquid temperature range: 0-80℃(PP) 0-100℃ (PVDF). Suitable for specific gravity below 1.3 (specify when ordering, should the gravity be higher).

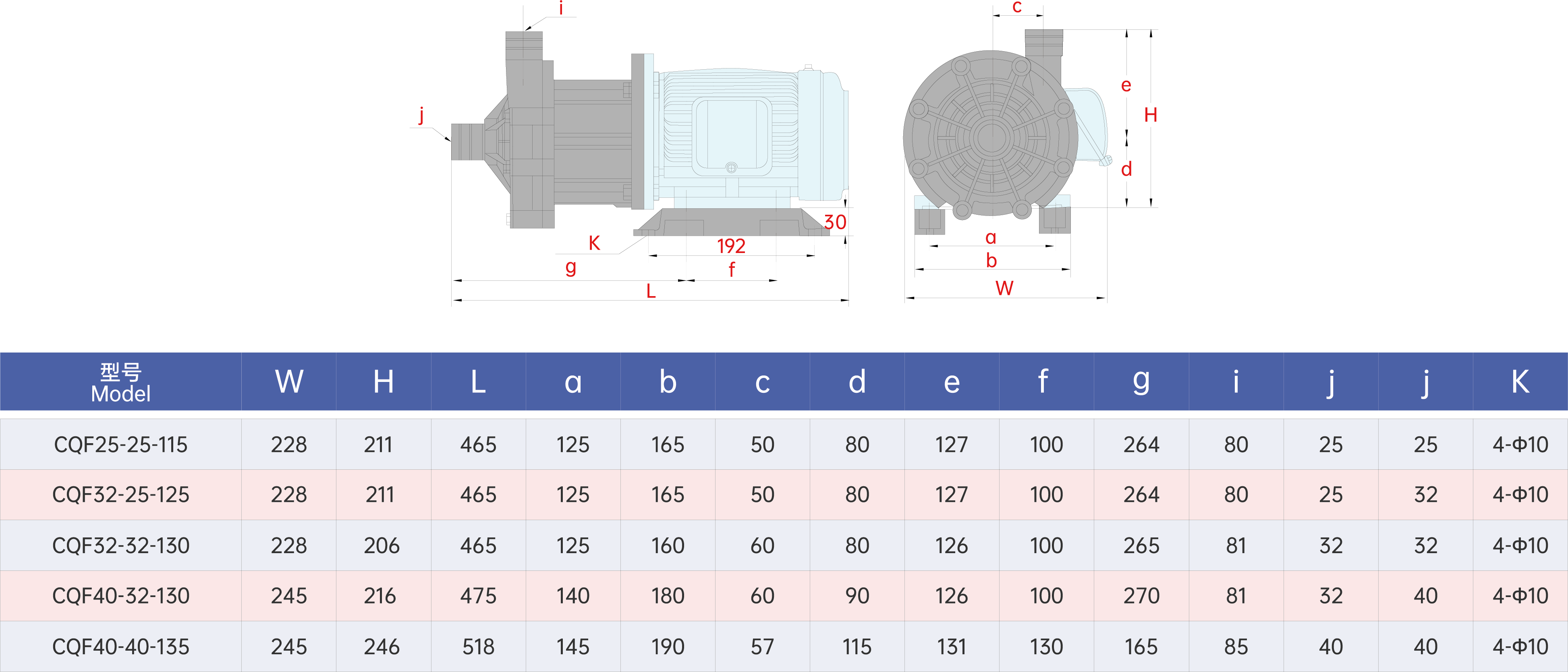

Installing Dimensions

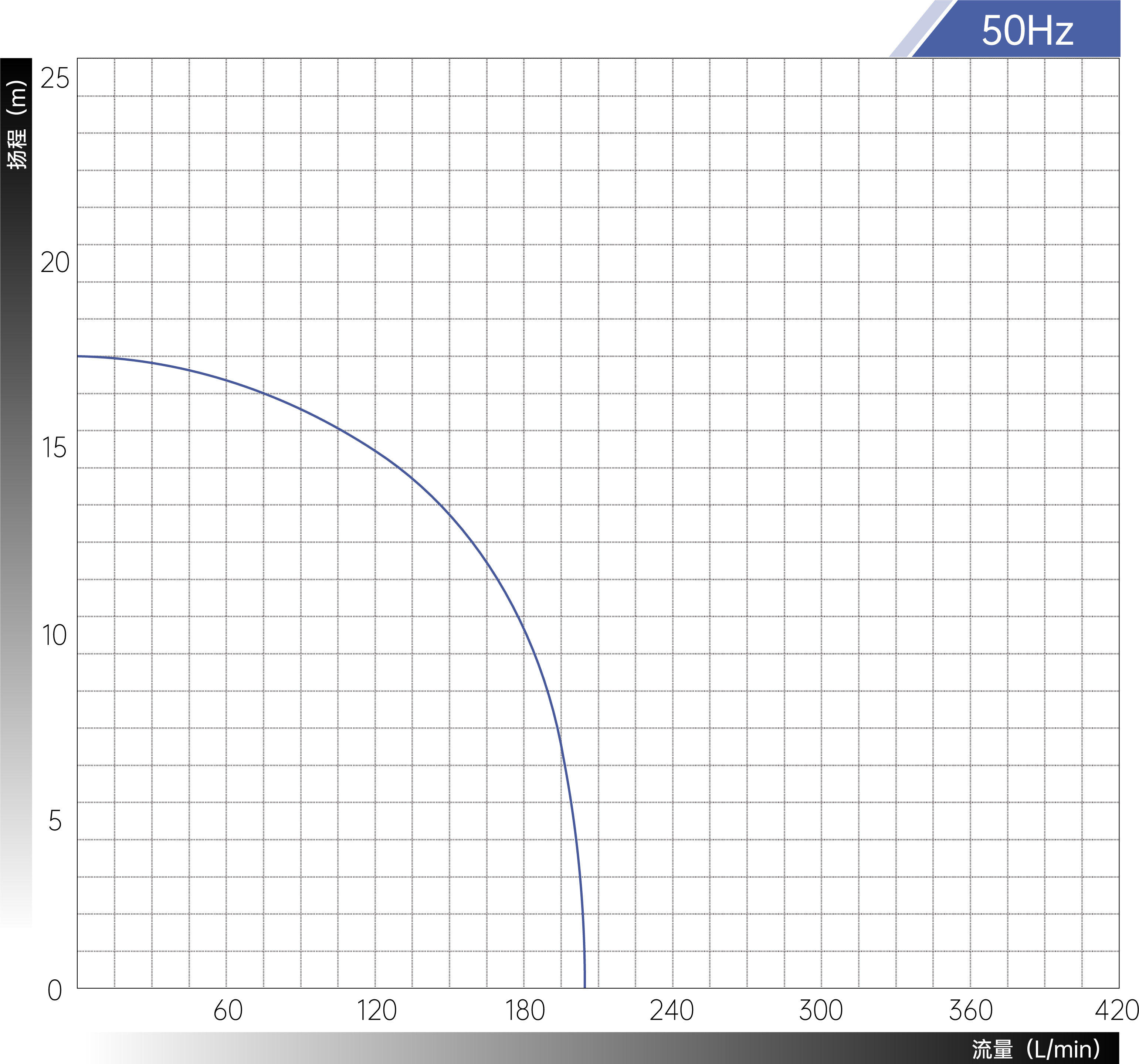

Performance Chart

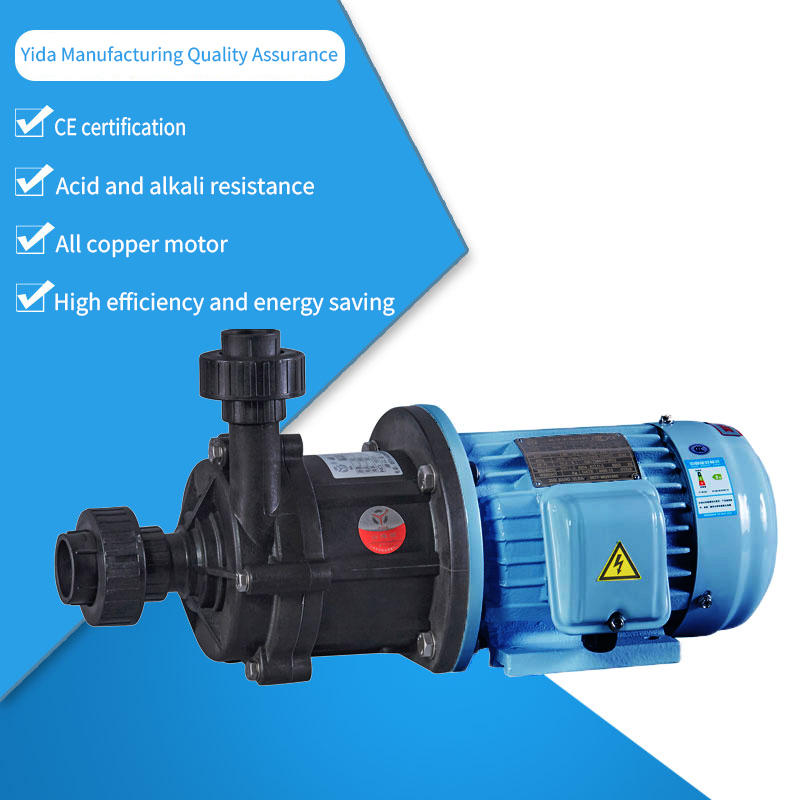

Engineered for aggressive media, the CQF25-25-115 acid/alkali-resistant magnetic drive pump delivers leak-free transfer of corrosive fluids up to 90°C. Its sealless design eliminates shaft seal failures while reinforced polypropylene wetted parts withstand concentrated acids and solvents.
Key features:
25m max head performance
Zero leakage guaranteed
Energy-efficient operation
Modular maintenance (no pipe disconnection)
Ideal for chemical processing, electroplating, and wastewater applications. The CQF25-25-115 reduces downtime with corrosion-proof internals and tool-free component access. Achieve reliable chemical transfer with 30% lower lifecycle costs versus traditional pumps.
