Product Description
CQF Specification
| Model | In/out (diameter) | Hose connection | Maximum output | Standard output | Motor | |||||
| Inlet | Outlet | Inlet | Outlet | Flow | Head | Flow | Head | Power | Voltage | |
| (mm) | (mm) | (mm) | (mm) | (L/min) | (m) | (L/min) | (m) | (KW) | (V) | |
| CQF20-20-80 | 20X20 | 26 | 26 | 86 | 6.7 | 58 | 5 | 0.18 | 220/380 | |
*Union interface and flanged interface are available upon request. Liquid temperature range: 0-80℃(PP) 0-100℃ (PVDF). Suitable for specific gravity below 1.3 (specify when ordering, should the gravity be higher).

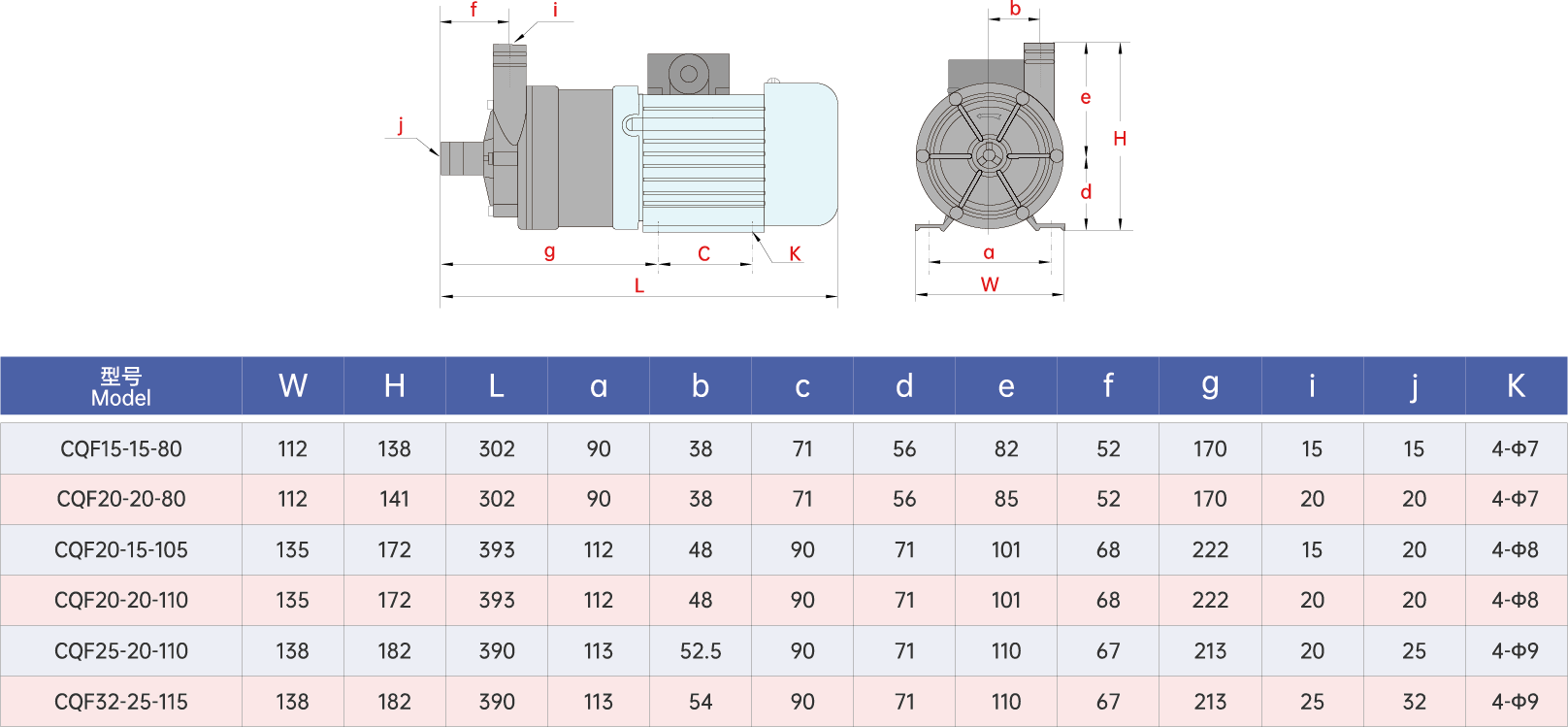

Installing Dimensions

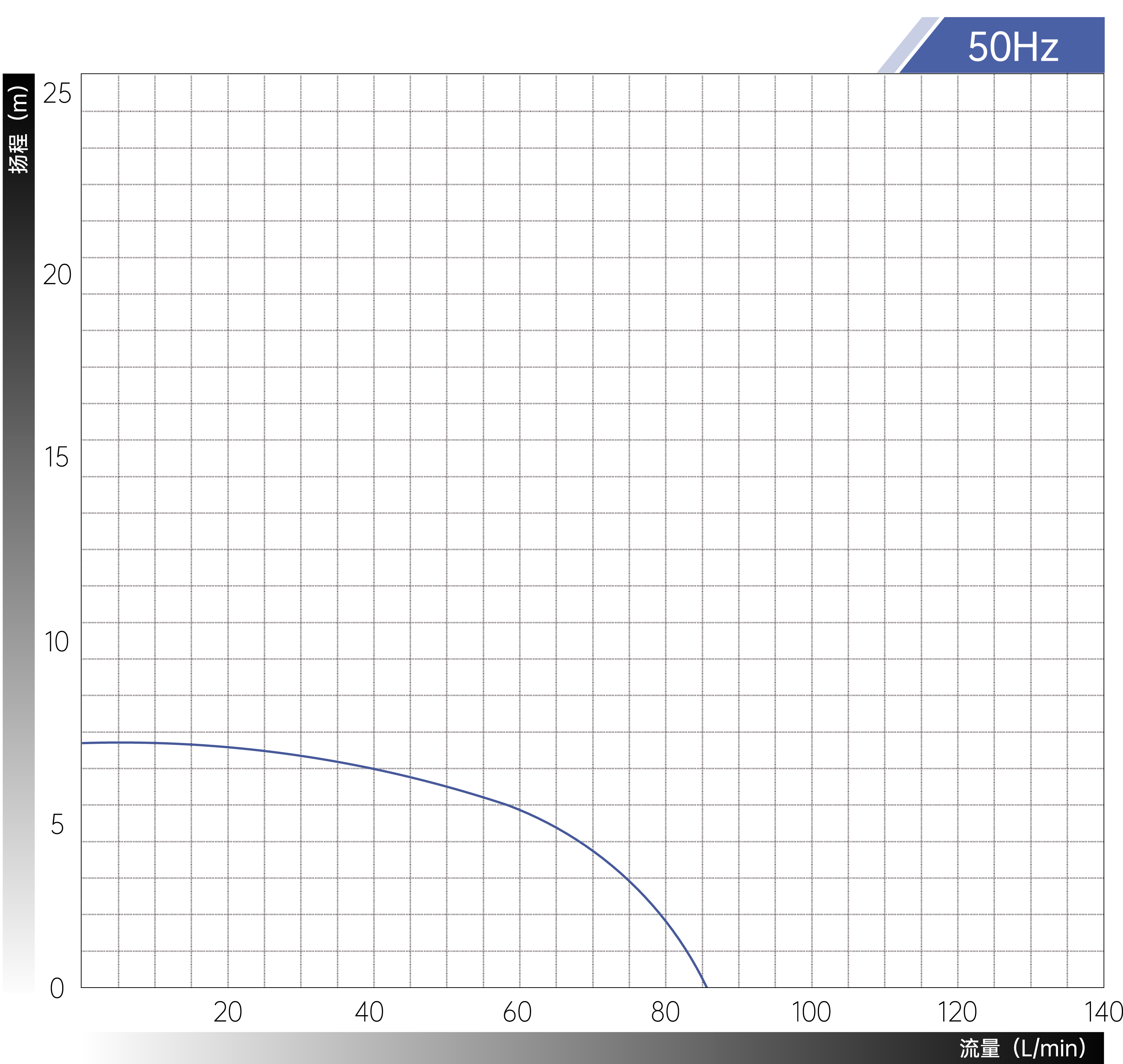

Performance Chart
The CQF20-20-80 acid/alkali-resistant magnetic drive pump delivers reliable, leak-free transfer of corrosive fluids. Its sealless design eliminates leakage risks while handling aggressive chemicals like acids, solvents, and caustics up to 90°C.
Constructed with reinforced polypropylene wetted parts and corrosion-resistant internals, the pump ensures maximum durability. The integrated impeller-magnetic rotor reduces energy consumption and operational noise. Modular components enable quick maintenance without disconnecting piping.
Ideal for chemical processing, wastewater treatment, and electroplating, the CQF20-20-80 combines safety, efficiency, and simplified servicing in critical industrial applications.
