Chemical Self-Priming Pump
Unique Shaft Seal Design-the installed type adopts Teflon Bellow Seal's self-cooling design,free from the need for cooling circuit tubes.Self-priming Design-a maximum suction of 5 meters.One-piece covers and foots,easy to maintain and assemble.Corrosion resistant. Material: GFRPP, PVDF.Resistant to strong acids and alkalis.
Chemical Acid-Alkali Resistant Submersible Pump
Innovative dry external shafts free the electric motor of friction.Long-time waterless idling won't damage the machine. No risk of leakage.●Suitable for horizontal plating line and treatment of waste gases.●Long lifespan and energy-efficient.Corrosion resistant Material: GFRPP, PVDF,Resistant to strong acids and alkalis.
Corrosion-Resistant Vertical Pump
Innovative dry external shafts free the electric motor of friction.Long-time waterless idling won't damage the machine. No risk of leakage.Suitable for horizontal plating line and treatment of waste gases.Long lifespan and energy-efficient.Corrosion resistant Material: GFRPP, PVDF,Resistant to strong acids and alkalis.
Corrosion-Resistant Magnetic Drive
MPH series magnetic pumps innovative,energy-saving design maximizes the performance and durability of the product, Material: GFRPP applicable temperature:below 80℃; and applicable temperature of PVDF: below 100℃.The flow passage components are made of reinforced polypropylene plastic.Pump shafts,bearings,and end rings are made of highly corrosion-resistant materials, such as ceramic, filed PTFE, and carbon, to ensure the safe passage of most chemical fluids.The pump adopts a design without shaft seals,which solved the inevitable leakage problem faced by traditional pumps with the seals.The plastic components adopt an optimized structure and are reinforced by glass fiber.The impellers and magnetic inner rotors adopt the plastic injection molding method, which reduces the volume of the pump components and increases its efficiency.The pump uses modular main components,which can be easily disassembled, examined and maintained.

Pipe-Type Magnetic Drive Pump

Because of its innovative energy-saving design, CQF series magnetic pumps can make the magnetic pumps exert the maximum efficiency and greatly improve the durability of the products.The plastic components adopt an optimized structure and are reinforced by glass fiber. The impellers and magnetic rotors adopt the plastic injection molding method, which reduces the volume of the pump components and increases its efficiency.The flow passage components are made of reinforced polypropylene plastic. Pump shafts, bearings, and end rings are made of the latest corrosion resistant materials. Together with the leakage-free structure without shaft seals, the safe passage of most chemical fluids can be ensured.The pump uses modular main components,which can be easily disassembled and examined. It's easy to maintain.

Send Inquiry

Product Description

CQF Specification

Model	In/out (diameter)		Hose connection		Maximum output		Standard output		Motor
	Inlet	Outlet	Inlet	Outlet	Flow	Head	Flow	Head	Power	Voltage
	(mm)	(mm)	(mm)	(mm)	(L/min)	(m)	(L/min)	(m)	(KW)	(V)
CQF15-15-80	15X15		twenty one	twenty one	60	8	55	5	0.12	220/380

*Union interface and flanged interface are available upon request. Liquid temperature range: 0-80℃(PP) 0-100℃ (PVDF). Suitable for specific gravity below 1.3 (specify when ordering, should the gravity be higher).

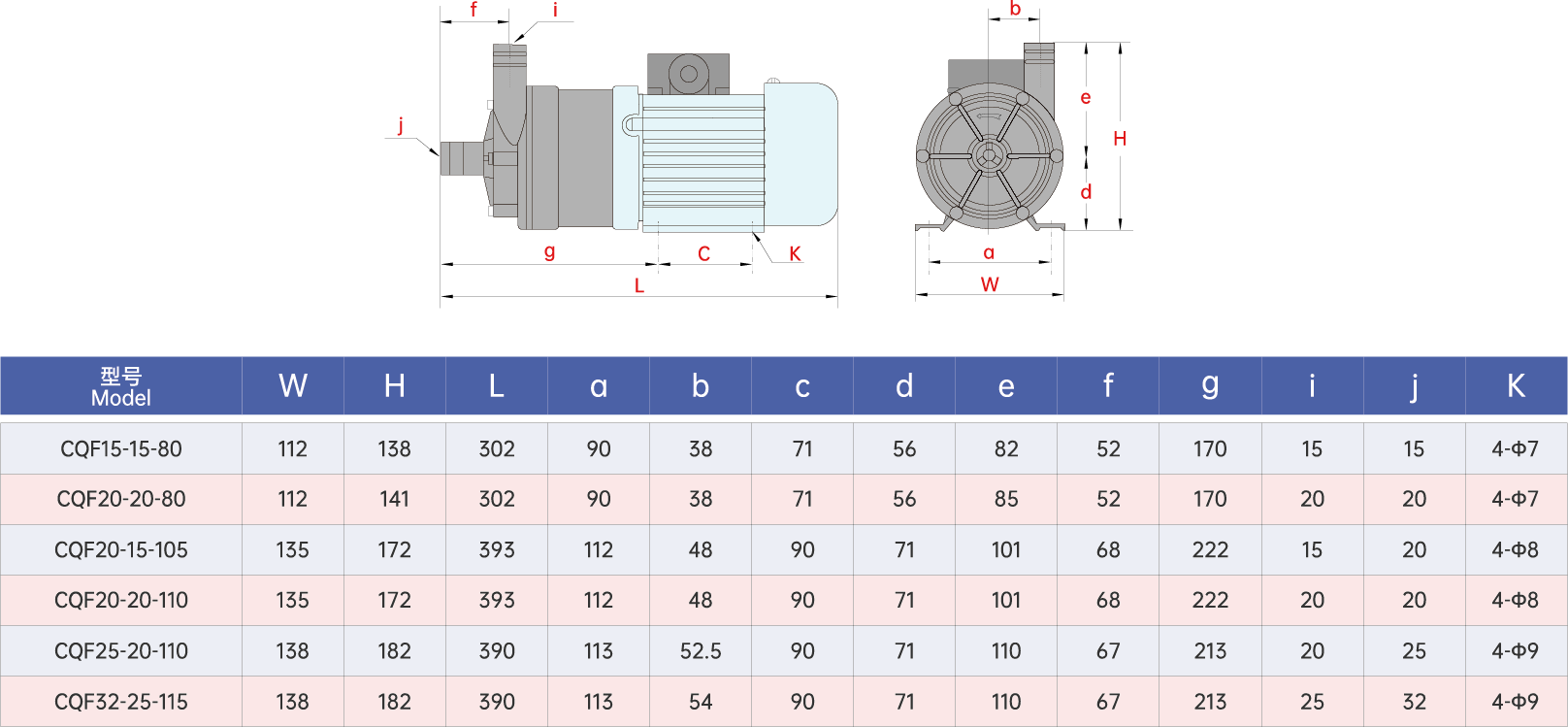

Installing Dimensions

Pipe-Type Magnetic Drive Pump

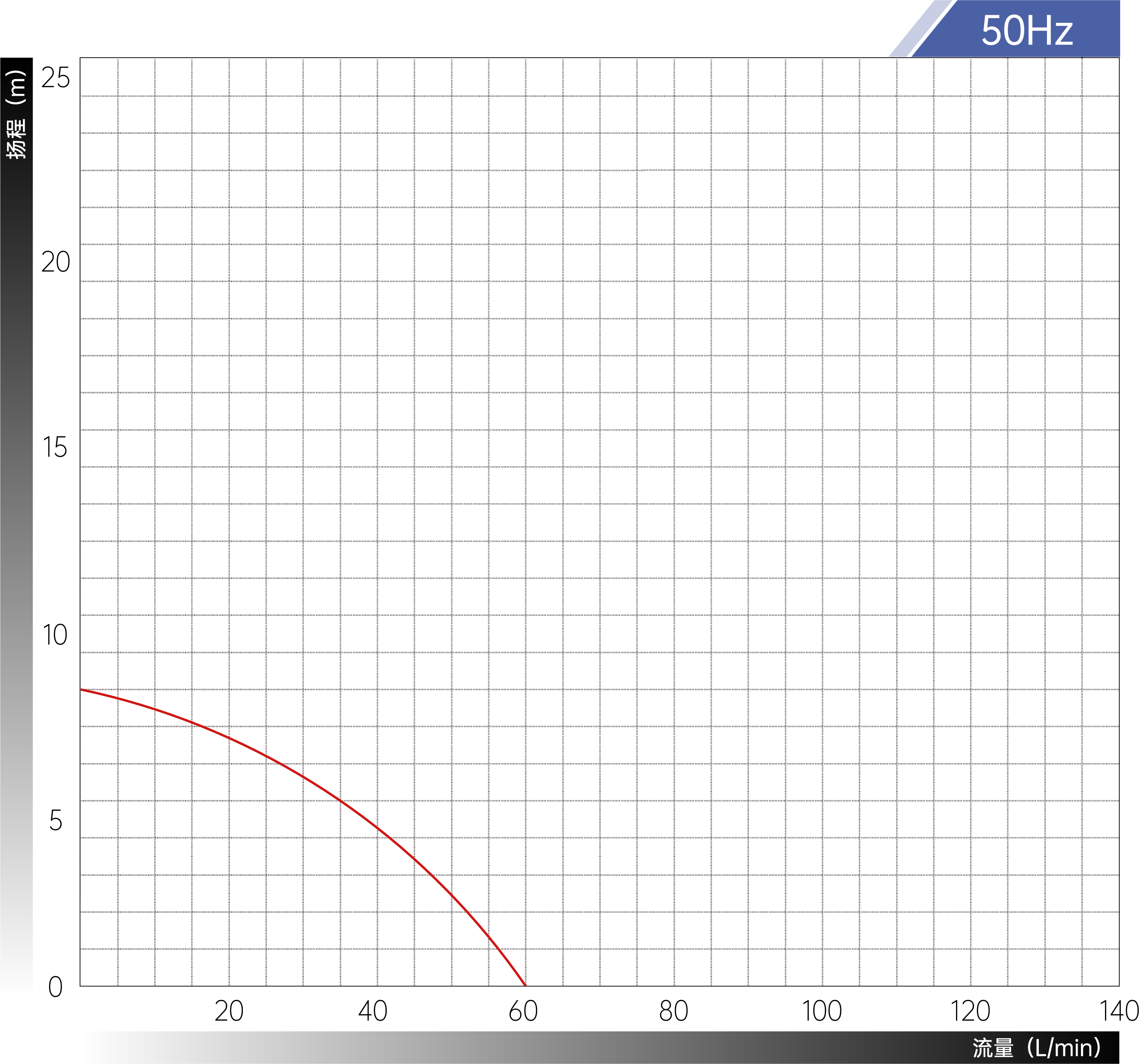

Performance Chart

Pipe-Type Magnetic Drive Pump

CQF15-15-80 Acid/Alkali-Resistant Magnetic Drive Pump

Featuring an innovative energy-efficient design, this magnetic drive pump optimizes performance while significantly enhancing product durability.

Structural optimization incorporates fiberglass-reinforced plastic components. The impeller and magnetic rotor utilize integrated single injection molding, reducing pump assembly size.

Wetted parts are constructed from reinforced polypropylene (RPP). The pump shaft, bearings, and containment ring employ advanced corrosion-resistant materials. Combined with a sealless leak-free design, this ensures safe transfer of most chemical fluids.

Modular major components facilitate swift disassembly and inspection, streamlining maintenance procedures.
