Product Description
CQF Specification
| Model | In/out (diameter) | Hose connection | Maximum output | Standard output | Motor | |||||
| Inlet | Outlet | Inlet | Outlet | Flow | Head | Flow | Head | Power | Voltage | |
| (mm) | (mm) | (mm) | (mm) | (L/min) | (m) | (L/min) | (m) | (KW) | (V) | |
| CQF32-25-125 | 32X25 | 42 | 33 | 250 | 19 | 180 | 12 | 0.75 | 380 | |
*Union interface and flanged interface are available upon request. Liquid temperature range: 0-80℃(PP) 0-100℃ (PVDF). Suitable for specific gravity below 1.3 (specify when ordering, should the gravity be higher).
Installing Dimensions

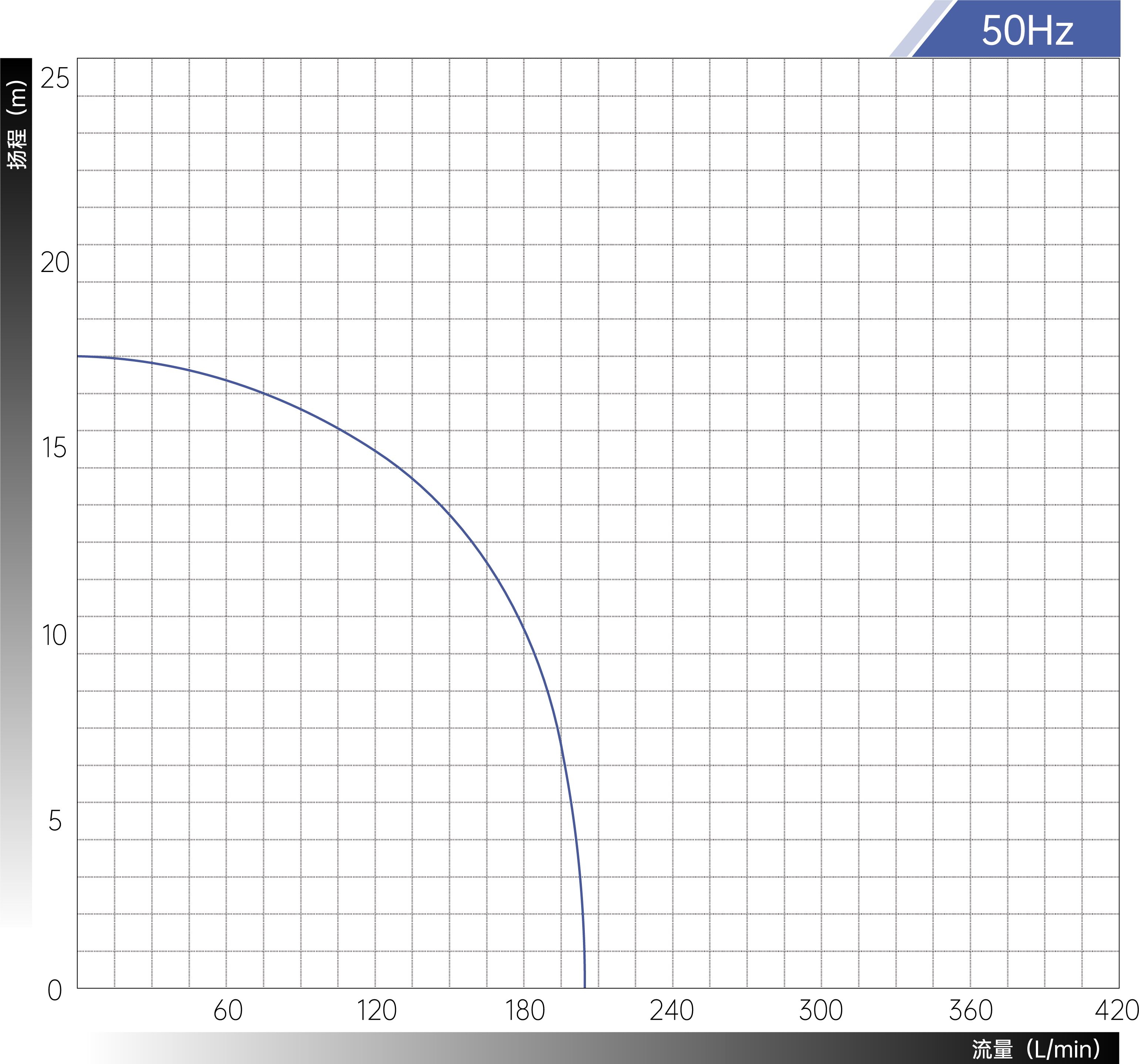

Performance Chart

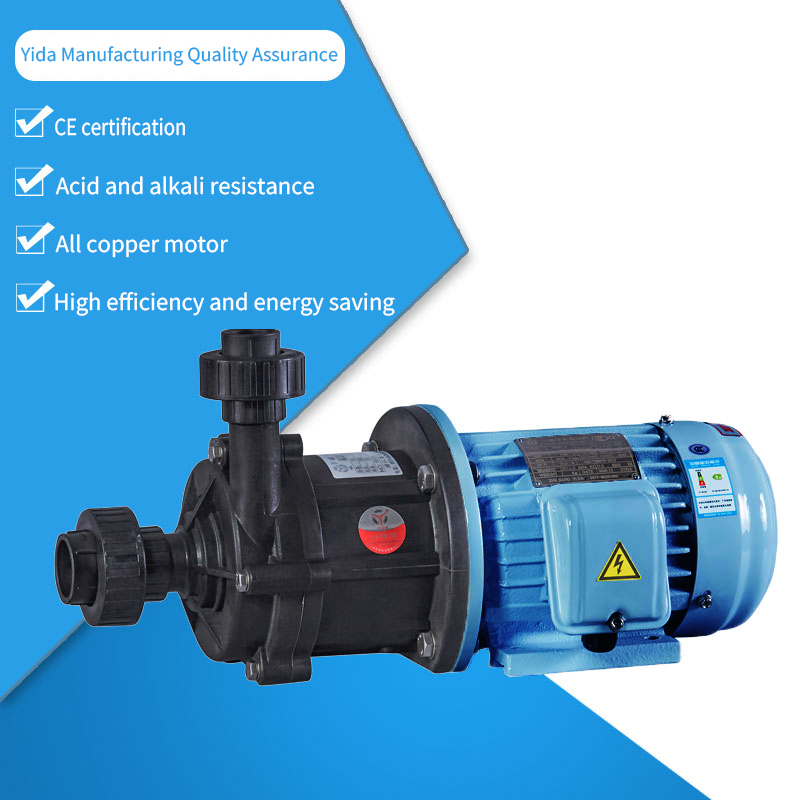

Engineered for extreme corrosion resistance, the CQF32-25-125 acid/alkali-resistant magnetic drive pump delivers 35m³/h leak-free transfer of aggressive acids, solvents, and high-viscosity fluids up to 90°C. Its sealless design eliminates shaft seal failures while industrial-grade bearings and reinforced polypropylene wetted parts ensure longevity.
Key Benefits:
25m max head | 125mm port size
Zero leakage guarantee
Tool-free modular maintenance
40% lower lifecycle costs
Ideal for chemical processing, industrial wastewater, and acid circulation systems. Optimize safety and reduce downtime with guaranteed corrosion-proof performance.
