Product Description
YD Specification
| Model | Maximum output | Standard output | Inlet/outlet (diameter) | Motor | Weight | ||||
| YD-50032 | Flow | Head | Flow | Head | Voltage | Power | Voltage | ||
| (L/min) | (m) | (L/min) | (m) | (mm) | (HP) | (KW) | (V) | (KG) | |
| 410 | 23 | 300 | 14 | 50/50 | 3 | 2.2 | 380 | 42 | |
Installing Dimensions

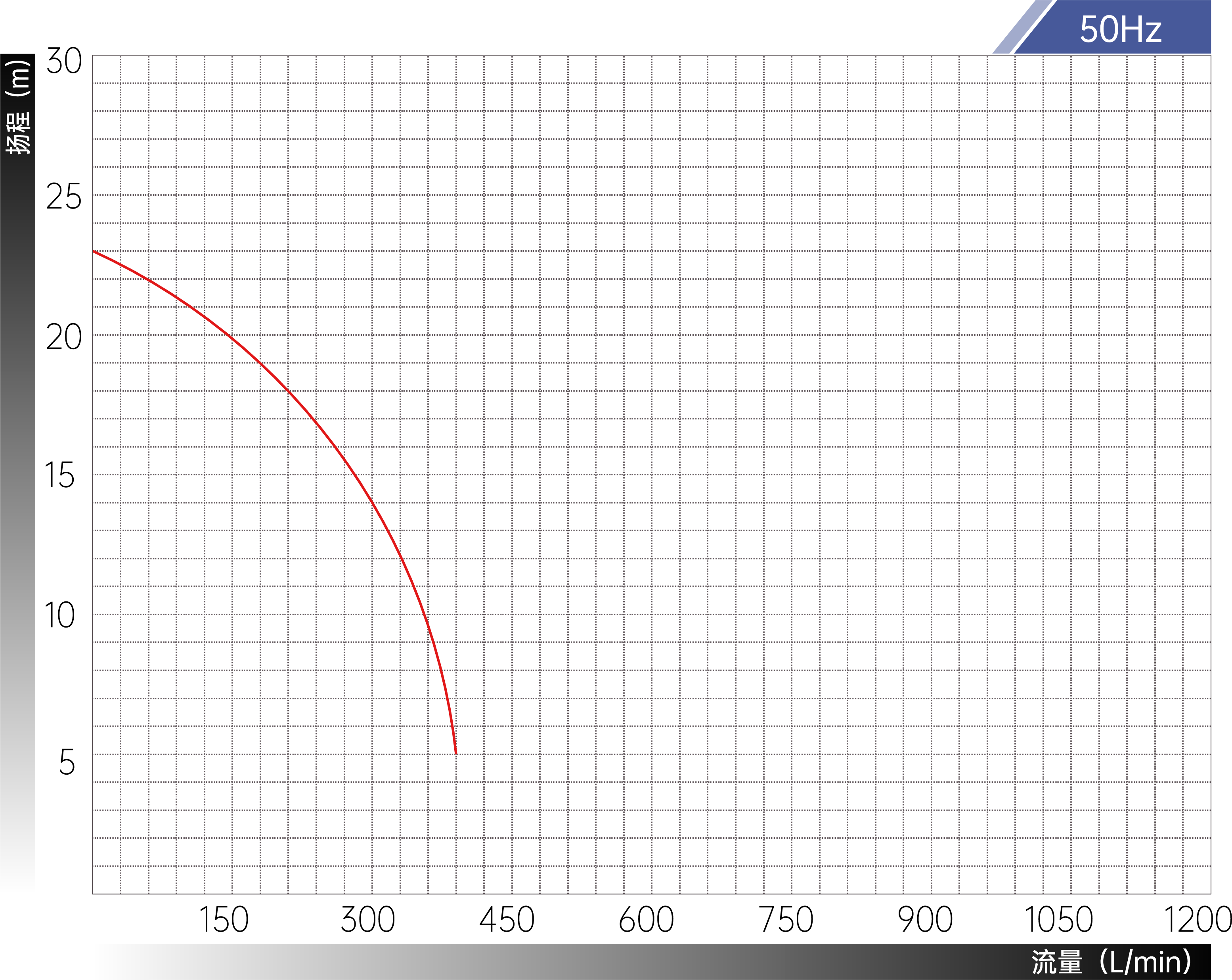

Performance Chart
YD-50032 Self-Priming Magnetic Pump
The YD-50032 self-priming magnetic pump redefines extreme-condition fluid safety with eddy-current magnetic drive technology. Hermetic static sealing eliminates dynamic leakage risks, while crystalline-reinforced fluorocarbon wetted parts resist molten chemicals and oxidative solvents. Intelligent priming integrates multi-stage gas-liquid separation volutes and anti-siphon valves, enabling instant high-viscosity startup without bottom valves. Dry-running activates magnetic eddy-current thermal management to protect critical components. Heavy-duty horizontal construction adapts to photovoltaic etching circulation, high-temperature pickling, and specialty chemical transfer, setting new enclosed governance benchmarks.
