Product Description
Pump
YD Specification
| Model | Maximum output | Standard output | Inlet/outlet (diameter) | Motor | Weight | ||||
| YD-40022 | Flow | Head | Flow | Head | Voltage | Power | Voltage | ||
| (L/min) | (m) | (L/min) | (m) | (mm) | (HP) | (KW) | (V) | (KG) | |
| 300 | 19 | 250 | 12 | 40/40 | 2 | 1.5 | 380 | 34 | |
Installing Dimensions

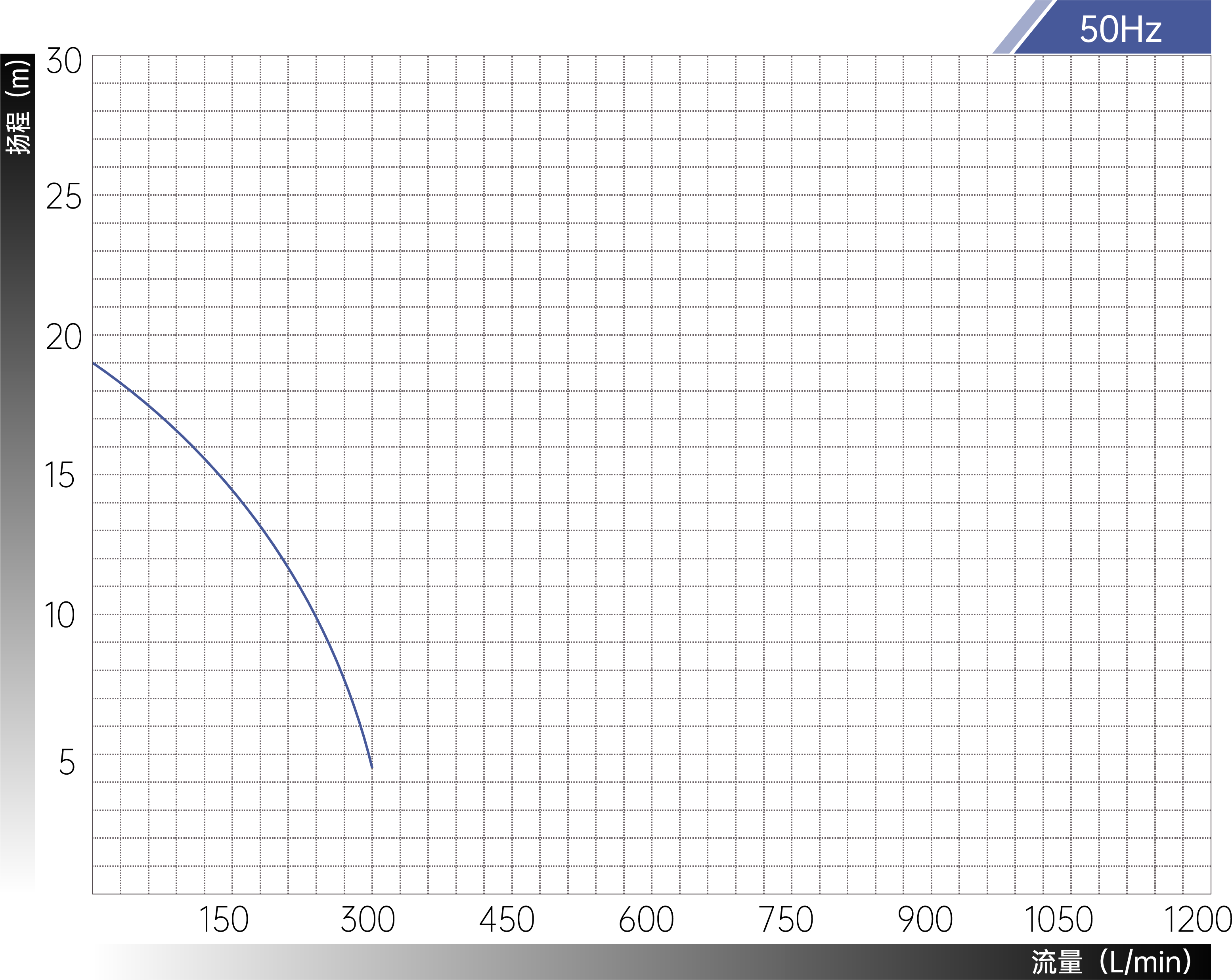

Performance Chart
YD-40022 Self-Priming Magnetic Pump
The YD-40022 self-priming magnetic pump redefines hazardous fluid safety with permanent magnetic coupling technology, ensuring zero-leakage transfer. Its static sealing eliminates mechanical seal failures, while fluoropolymer composite wetted parts resist aggressive acids, alkalis, and organic solvents. The integrated priming system combines gas-liquid separation volute and built-in check valves, enabling rapid vacuum initiation without bottom valves. Dry-running triggers automatic cooling circulation to protect critical components. Compact horizontal design adapts to electroplating circulation, chemical processing, and exhaust scrubbing, establishing enclosed governance for flammable media
