Product Description
YD Specification
| Model | Maximum output | Standard output | Inlet/outlet (diameter) | Motor | Weight | ||||
| YD-50052 | Flow | Head | Flow | Head | Voltage | Power | Voltage | ||
| (L/min) | (m) | (L/min) | (m) | (mm) | (HP) | (KW) | (V) | (KG) | |
| 480 | 27 | 440 | 15 | 50/50 | 5 | 3.7 | 380 | 54 | |
Installing Dimensions

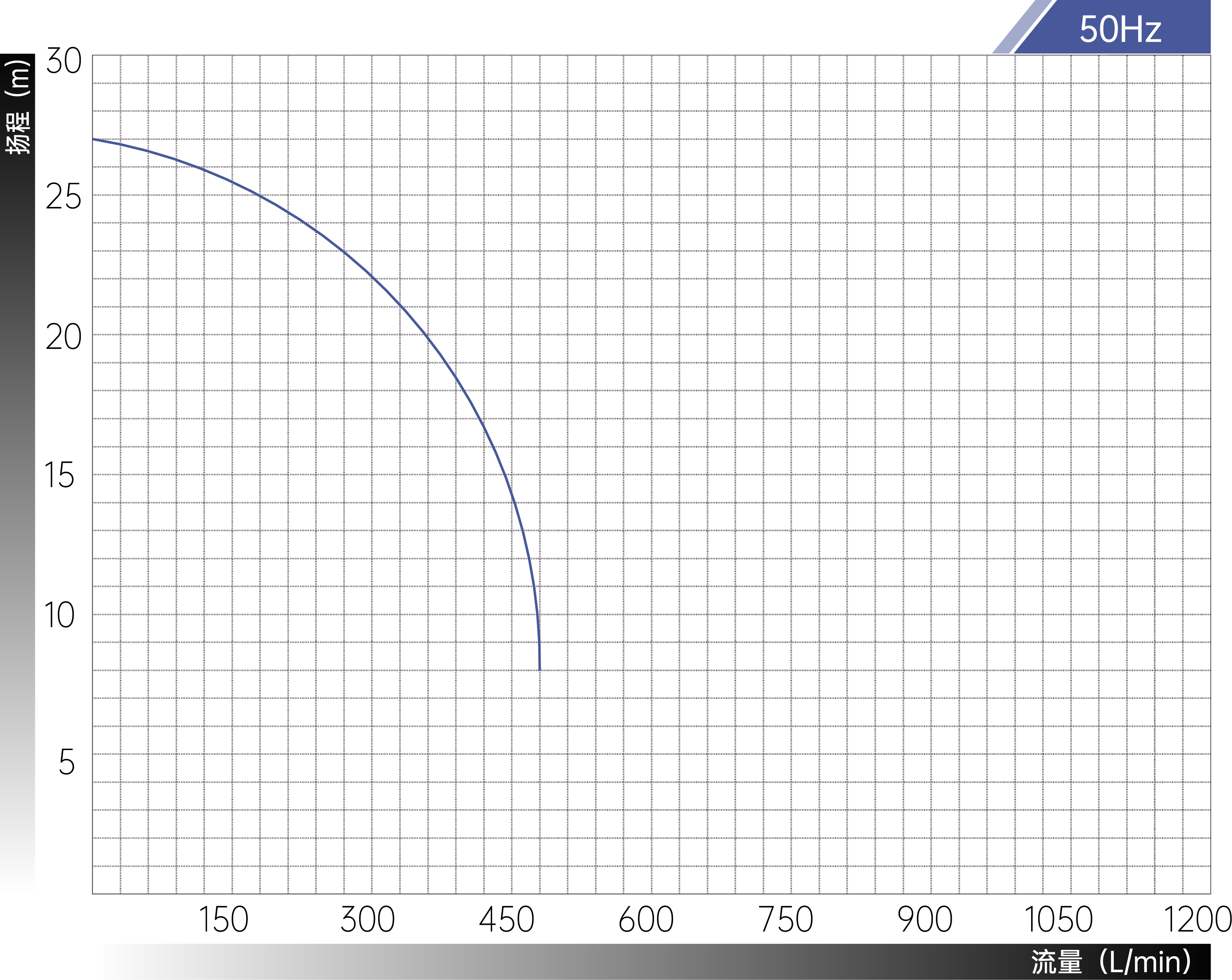

Performance Chart
YD-50052 Self-Priming Magnetic Pump
The YD-50052 self-priming magnetic pump revolutionizes hazardous fluid handling with hermetic magnetic drive technology. Internally mounted bellow seals integrate self-cooling protection, eliminating external cooling circuits and activating internal circulation during dry-running for zero-seal leakage. The priming system combines reinforced volute with gas-liquid separation and built-in check valves, enabling rapid vacuum initiation without backflow. Fluoropolymer composite wetted parts resist acids, alkalis, and organic solvents. Compact horizontal construction adapts to electroplating circulation, chemical processing, and exhaust scrubbing, redefining enclosed governance for flammable and toxic media
