Chemical Self-Priming Pump
Unique Shaft Seal Design-the installed type adopts Teflon Bellow Seal's self-cooling design,free from the need for cooling circuit tubes.Self-priming Design-a maximum suction of 5 meters.One-piece covers and foots,easy to maintain and assemble.Corrosion resistant. Material: GFRPP, PVDF.Resistant to strong acids and alkalis.
Chemical Acid-Alkali Resistant Submersible Pump
Innovative dry external shafts free the electric motor of friction.Long-time waterless idling won't damage the machine. No risk of leakage.●Suitable for horizontal plating line and treatment of waste gases.●Long lifespan and energy-efficient.Corrosion resistant Material: GFRPP, PVDF,Resistant to strong acids and alkalis.
Corrosion-Resistant Vertical Pump
Innovative dry external shafts free the electric motor of friction.Long-time waterless idling won't damage the machine. No risk of leakage.Suitable for horizontal plating line and treatment of waste gases.Long lifespan and energy-efficient.Corrosion resistant Material: GFRPP, PVDF,Resistant to strong acids and alkalis.
Corrosion-Resistant Magnetic Drive
MPH series magnetic pumps innovative,energy-saving design maximizes the performance and durability of the product, Material: GFRPP applicable temperature:below 80℃; and applicable temperature of PVDF: below 100℃.The flow passage components are made of reinforced polypropylene plastic.Pump shafts,bearings,and end rings are made of highly corrosion-resistant materials, such as ceramic, filed PTFE, and carbon, to ensure the safe passage of most chemical fluids.The pump adopts a design without shaft seals,which solved the inevitable leakage problem faced by traditional pumps with the seals.The plastic components adopt an optimized structure and are reinforced by glass fiber.The impellers and magnetic inner rotors adopt the plastic injection molding method, which reduces the volume of the pump components and increases its efficiency.The pump uses modular main components,which can be easily disassembled, examined and maintained.

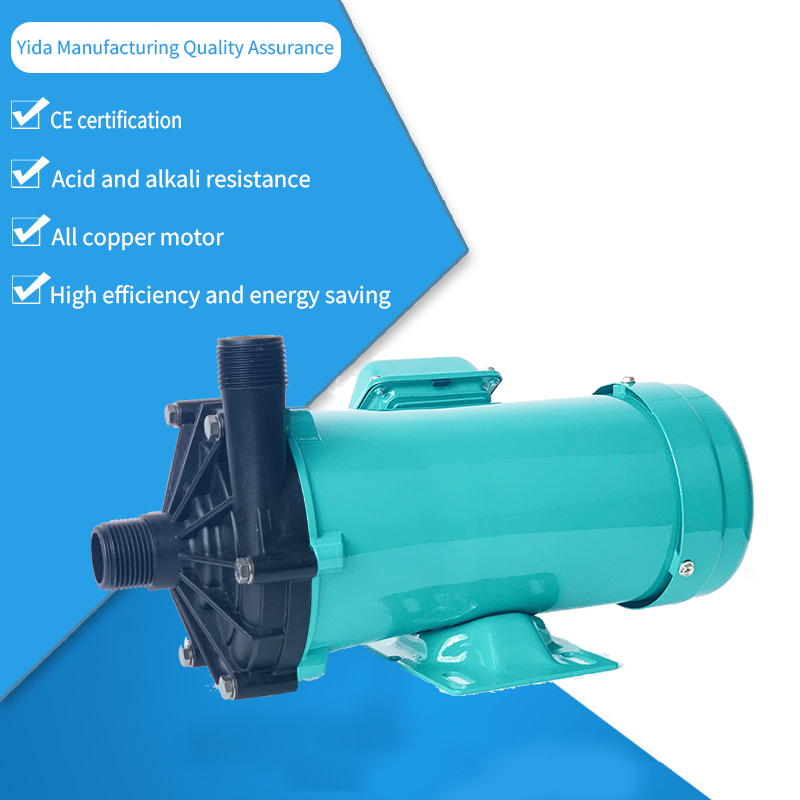

Chemical Magnetic Drive Pump

MP-series magnetic pump adopts glandless design with the pump body completely sealed. No leakage,corrosion of the pump body and environmental pollution will occur. It is an ideal corrosive liquid transfer pump. The maximum flow rate of MP-series pump is from 11 liters to 220 liters per minute, offering hose connection and thread connection options. The pump body is made of glass fiber reinforced polypropylene and high alumina ceramics where most chemical liquids can be safely transported. The pump body components are modular, making it easier for maintenance. The applicable temperature of the GFRPP material is below 80℃ and that of the PVDF material is below 100℃.

Send Inquiry

Product Description

MP Specification

Model	Hose connection		Threaded connection		Maximum output		Standard output		Specific gravity	Motor
MP-100RX(M)	Inlet	Outlet	Inlet	Outlet	Flow	Head	Flow	Head		Power	Voltage
	(mm)	(mm)	(mm)	(mm)	(L/mtn)	(m)	(L/mln)	(m)		(W)	(V)
	/	/	G1	G1	140	12.5	80	10.5	<1.3	250	380

*Union interface and flanged interface are available upon request. Liquid temperature range: 0-80℃(PP) 0-100℃ (PVDF). Suitable for specific gravity below 1.3 (specify when ordering, should the gravity be higher).

Installing Dimensions

Chemical Magnetic Drive Pump

Performance Chart

Chemical Magnetic Drive Pump
