Product Description
CQF Specification
| Model | Maximum output | Standard output | Inlet/outlet (diameter) | Motor | Weight | ||||
| CQF-Z50032 | Flow | Head | Flow | Head | Horsepower | Power | Voltage | ||
| (L/min) | (m) | (L/min) | (m) | (mm) | (HP) | (KW) | (V) | (KG) | |
| 460 | twenty one | 550 | 14 | 50/50 | 3 | 2.2 | 380 | 38 | |

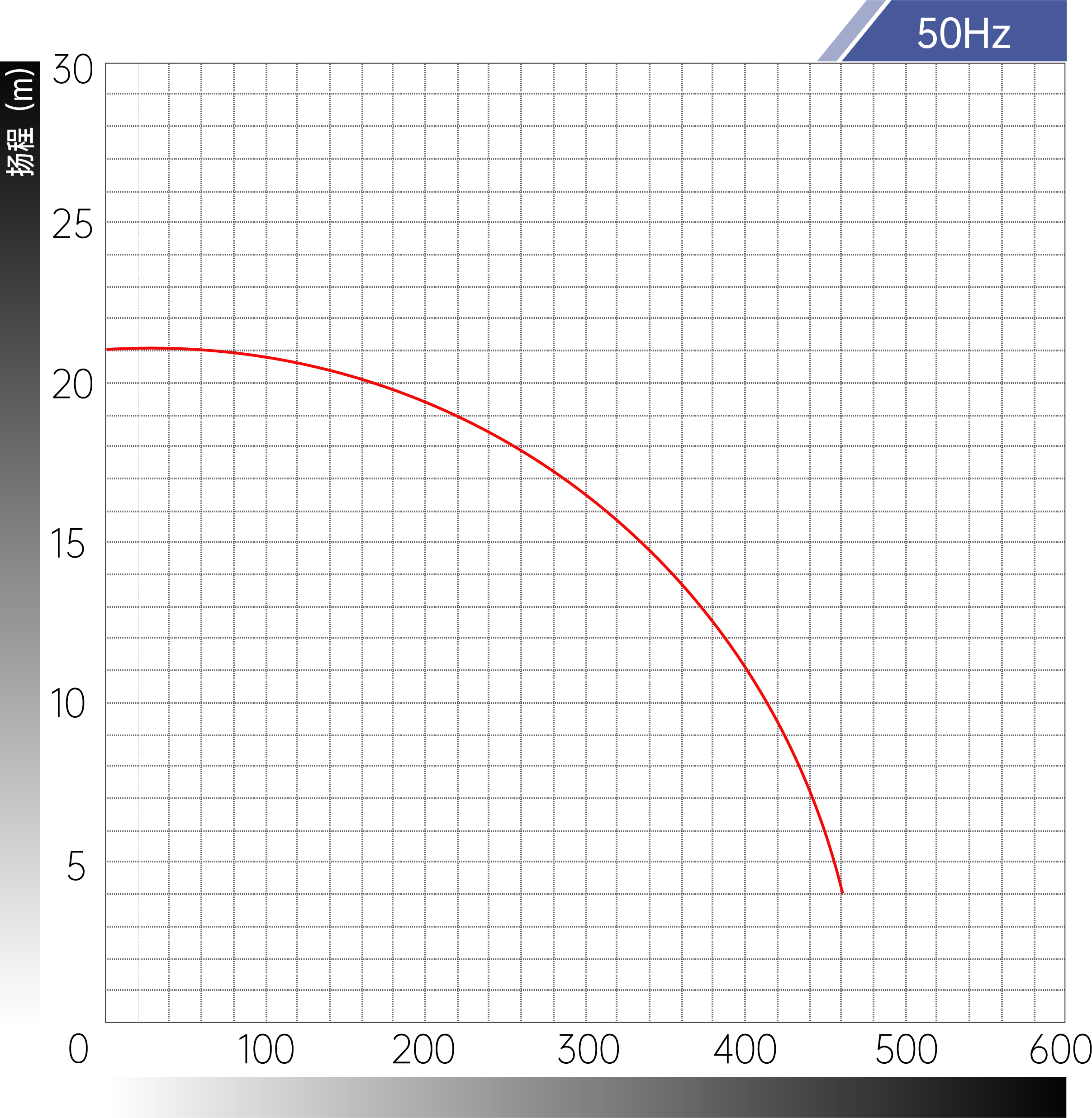

Performance Chart
CQF-Z50032 Chemical-Resistant Magnetic Pump
The CQF-Z50032 magnetic pump delivers leak-free hazardous fluid transfer via permanent magnetic coupling technology. Its static sealing eliminates dynamic seal failure risks, while fluoropolymer composite wetted parts resist aggressive acids, alkalis, and organic solvents Integrated magnetic drive with auto-protection ensures safe dry-run operation Gas-liquid separation volute enables rapid priming through multi-stage air exhaust Compact design guarantees zero-leakage handling of flammable, toxic, and ultra-pure media. Critical for precision chemical processing, electroplating circulation, pharmaceutical purification, and high-value material transfer, redefining industrial fluid governance.
