Fluoroplastic Magnetic Pump: Easy to Assemble and Disassemble, Convenient for Maintenance and Replacement

# 1. Introduction to Fluoroplastic Magnetic Drive Pumps

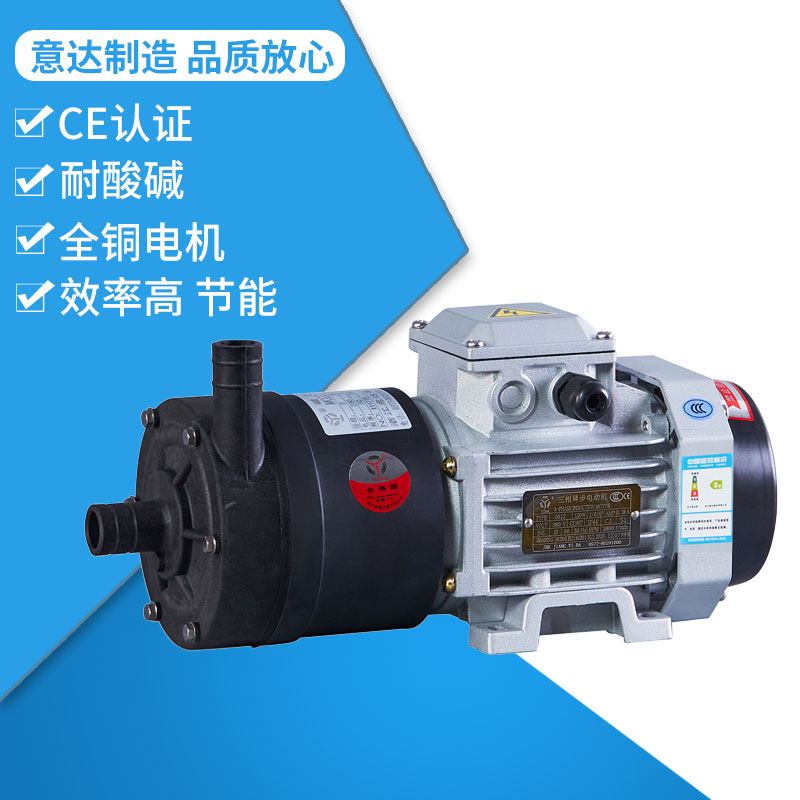

The fluoroplastic magnetic drive pump is a new type of leak-free pump constructed with fluoroplastic as the pump casing material. It features excellent corrosion resistance, high temperature resistance and superior sealing performance. It mainly consists of a driver, magnetic coupling, pump casing, impeller, bearing and other components. Compared with conventional pumps, fluoroplastic magnetic drive pumps possess the following advantages:

1. Corrosion resistance: Fluoroplastic materials deliver outstanding anti-corrosion performance and are suitable for transporting corrosive media.

2. High temperature resistance: Fluoroplastic magnetic drive pumps can operate under high-temperature conditions and apply to the conveyance of high-temperature media.

3. Excellent sealing performance: The magnetic coupling enables non-contact power transmission, eliminating leakage inside the pump and meeting environmental protection requirements.

4. Compact structure: Fluoroplastic magnetic drive pumps feature small size and light weight, facilitating installation and maintenance.

# 2. Simple Disassembly and Assembly of Fluoroplastic Magnetic Drive Pumps

To facilitate pump inspection and component replacement, fluoroplastic magnetic drive pumps are designed for easy disassembly and assembly. The simplified disassembly and assembly procedures are listed below:

1. Close the inlet and outlet valves of the pump to stop medium transportation.

2. Disconnect the motor from the pump and remove the motor.

3. Loosen the connecting bolts between the pump casing and the base, and detach the pump casing from the base.

4. Dismantle the flange mounted on the pump casing and take out components including the impeller and bearings.

5. Inspect and replace damaged parts.

6. Reassemble the pump in reverse order of disassembly.

# 3. Convenience of Maintenance and Component Replacement for Fluoroplastic Magnetic Drive Pumps

1. Long maintenance interval: Manufactured with premium materials, fluoroplastic magnetic drive pumps enjoy a long service life and reduced maintenance frequency.

2. Low maintenance cost: Thanks to the simple structure, the maintenance cost of fluoroplastic magnetic drive pumps is relatively low.

3. Fast maintenance speed: The easy-to-disassemble-and-assemble design simplifies inspection and part replacement, shortening maintenance downtime.

# 4. Value of Fluoroplastic Magnetic Drive Pumps in Enterprise-level Applications

1. Improved production efficiency: Stable operation of fluoroplastic magnetic drive pumps guarantees continuous production lines and boosts production efficiency.

2. Reduced production costs: By cutting maintenance expenses and extending service life, fluoroplastic magnetic drive pumps help enterprises lower production costs.

3. Guaranteed product quality: The reliable sealing performance prevents medium leakage effectively and ensures consistent product quality.

## Summary

With the merits of easy disassembly, assembly, maintenance and part replacement, fluoroplastic magnetic drive pumps provide efficient and reliable solutions for enterprise customers. When selecting and operating fluoroplastic magnetic drive pumps, enterprises shall pay attention to performance, quality, after-sales service and other aspects to secure stable pump operation and create greater benefits for the enterprise.
