Product Description
YDN Specification
| Model | In/outlet | Maximum output | Standard output | Motor | ||||
| YDN-20SK-1/4 | Flow | Head | Flow | Head | Horsepower | Power | Voltage | |
| (mm) | (L/min) | (m) | (L/min) | (m) | (HP) | (KW) | (V) | |
| 40/20 | 60 | 5 | 40 | 3.5 | 1/4 | 1/4 | 220/380 | |
Installing Dimensions

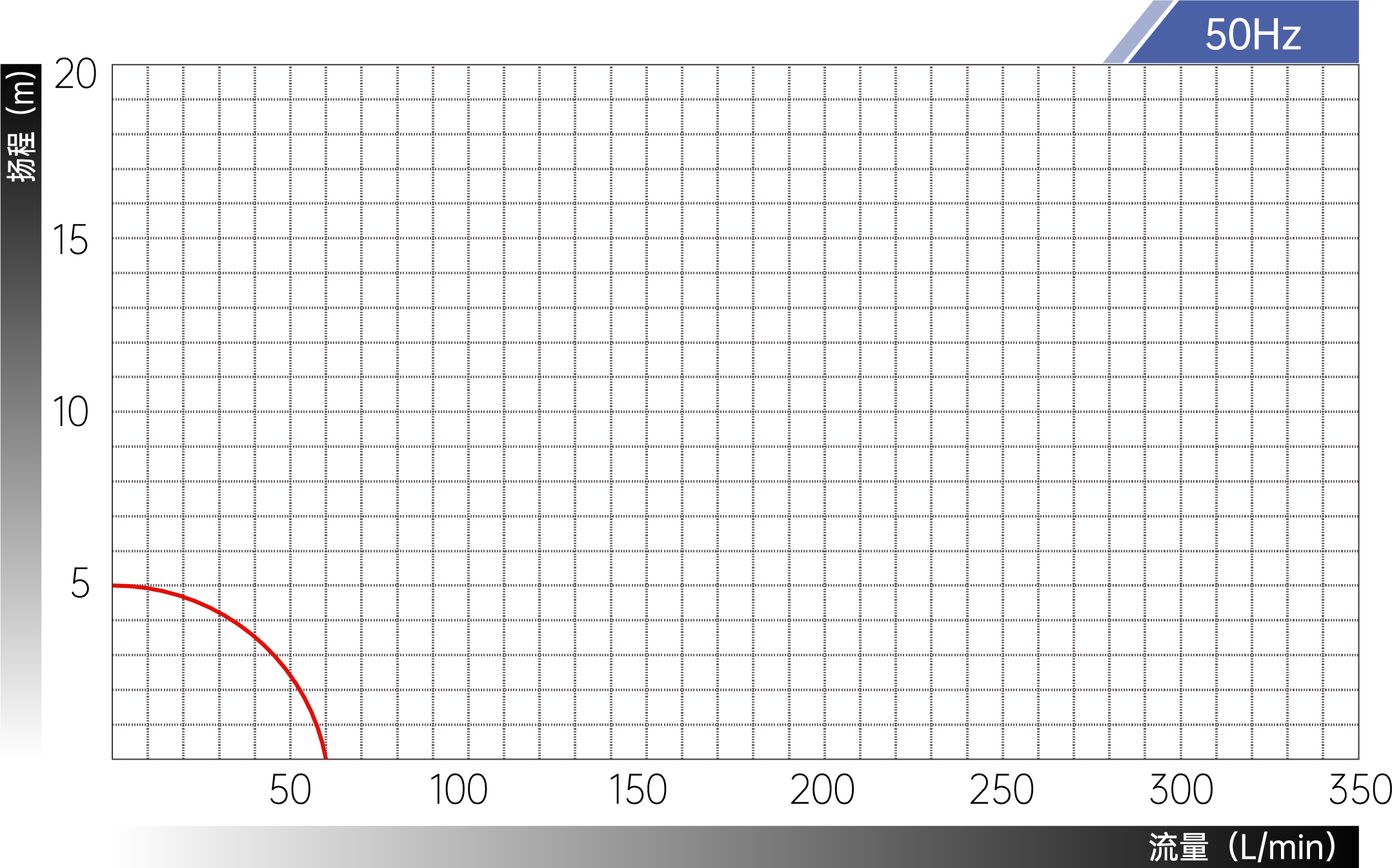

Performance Chart
YDN-20SK-1/4 Vertical Pump
Engineered for secure handling of corrosive fluids, the YDN-20SK-1/4 vertical pump integrates fluoropolymer corrosion resistance with leak-free dry-run protection. Advanced polymer wetted components withstand aggressive chemical media, while the non-contact sealing system activates automatic safeguards during fluid interruption. Its optimized mid-power drive delivers consistent flow and pressure for continuous industrial cycles, achieving exceptional energy efficiency. The space-saving vertical configuration supports both tank immersion and direct piping integration. Vital for critical applications including electroplating circulation, laboratory dosing, exhaust scrubbing, and precision electronics cleaning, ensuring zero-risk transfer of corrosive substances.
| Core Features | Technology Edge |
| Drive System | Energy-optimized |
| Flow Adaptability | Dynamic adjustment |
| Pressure Stability | Steady output |
| Corrosion Defense | Industrial-grade |
| Sealing Tech | Proactive protection |
Applications: Chemical process · Exhaust scrubbing · Microfabrication
