Product Description

Vertical Pump

YDN Specification

Model	In/outlet	Maximum output		Standard output		Motor
YDN-15SK-1/15	In/outlet	Flow	Head	Flow	Head	Horsepower	Power	Voltage
	(mm)	(L/min)	(m)	(L/min)	(m)	(HP)	(KW)	(V)
	20/15	50	2.5	20	2	1/15	0.06	220

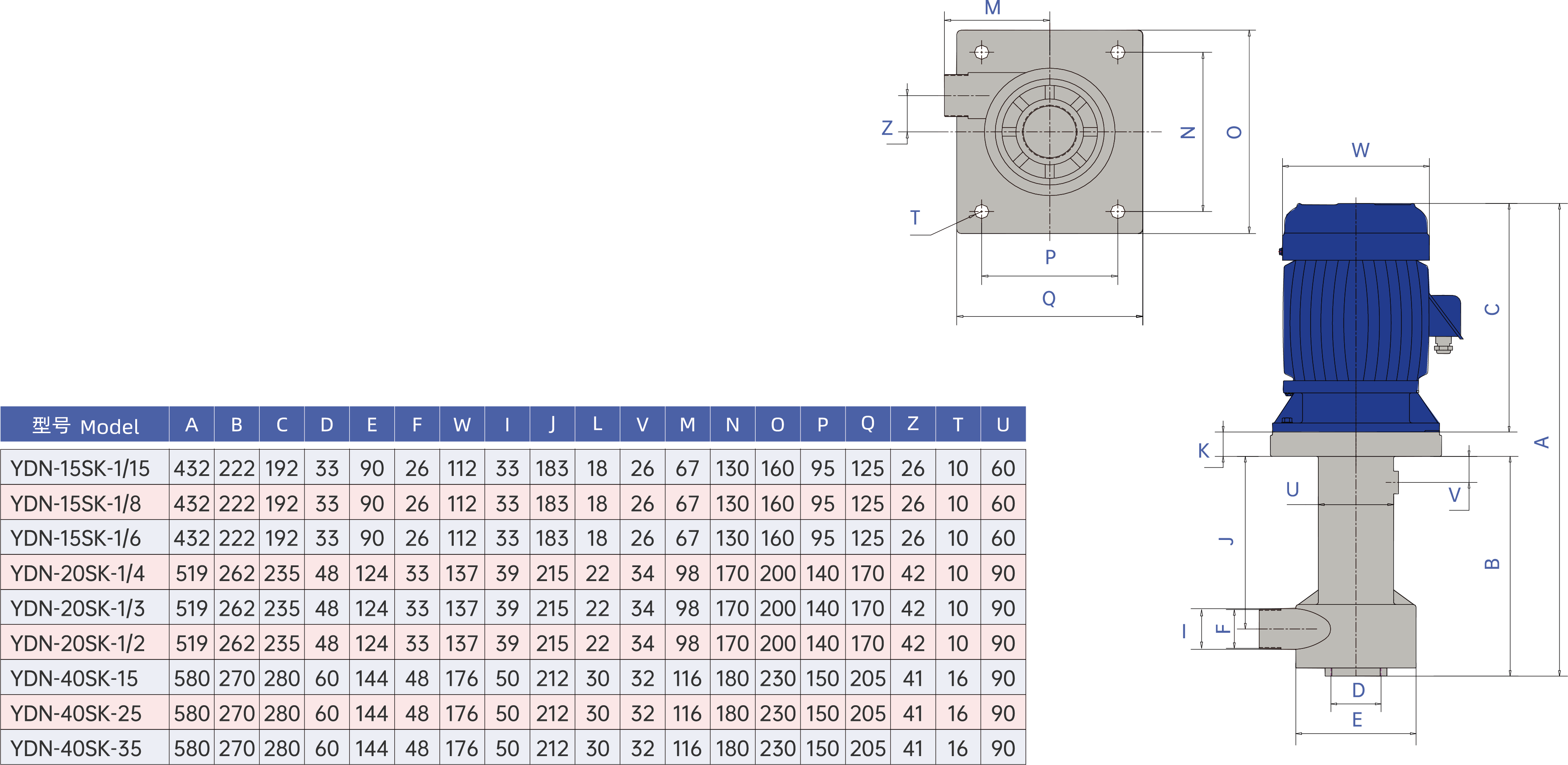

Installing Dimensions

Dry-Running Vertical Pump

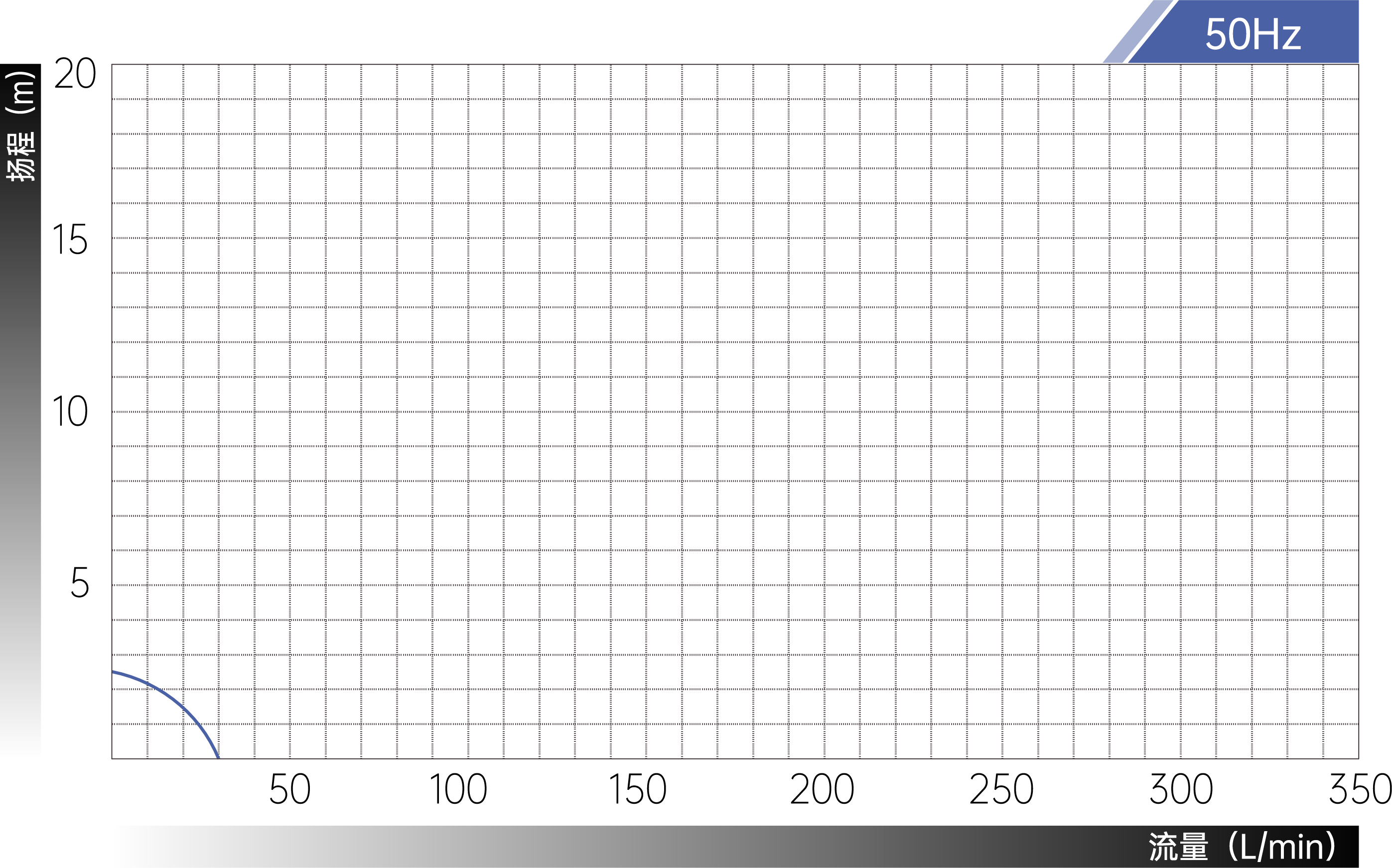

Performance Chart

Dry-Running Vertical Pump

YDN-15SK-1/15 Vertical Pump

The YDN-15SK-1/15 vertical pump delivers industrial-grade corrosion resistance and dry-run protection. Fluoropolymer wetted parts withstand aggressive acids/alkalis, while the seal-less design prevents damage during fluid interruptions. Its high-power motor drives robust flow and head performance for heavy-duty circulation, with optimized energy efficiency. The compact vertical exterior installation maximizes space savings. Critical for stable transfer in electroplating tank circulation, exhaust scrubber spray, PCB wet processes, and semiconductor cleaning.

Key Specs	Performance
Motor Power	High-efficiency
Max Flow	Industrial-grade
Head Range	High-pressure
Temp Tolerance	Wide spectrum
Seal Tech	Fluororubber enhanced

Applications: Chemical circulation · Exhaust treatment · Precision cleaning
