Product Description
YND Specification
| Model | In/outlet | Maximum output | Standard output | Motor | ||||
| YDN-40SK-15 | Flow | Head | Flow | Head | Horsepower | Power | Voltage | |
| (mm) | (L/min) | (m) | (L/min) | (m) | (HP) | (KW) | (V) | |
| 50/40 | 250 | 9 | 200 | 7 | 1 | 15 | 380 | |
Installing Dimensions

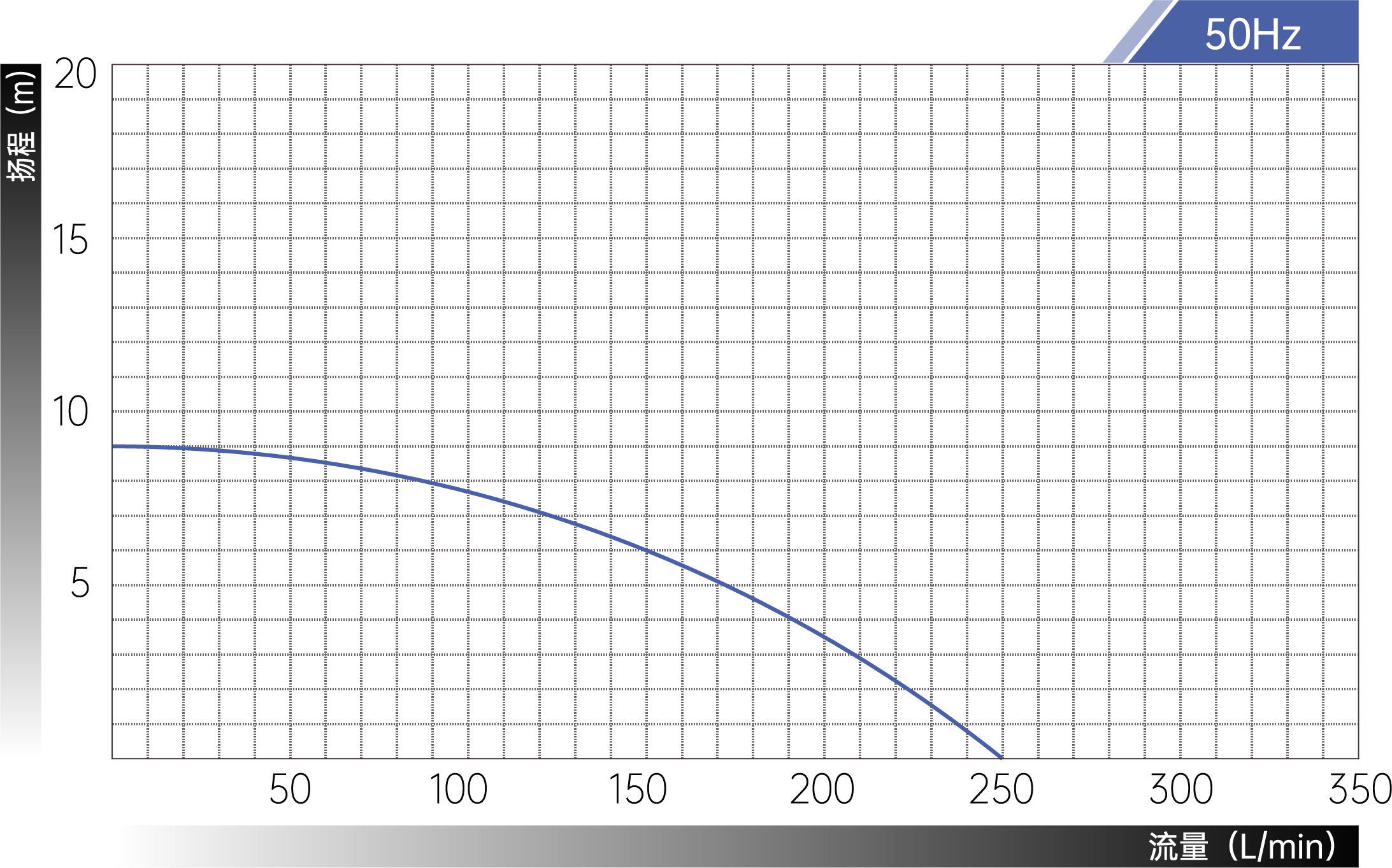

Performance Chart
Model Decoding

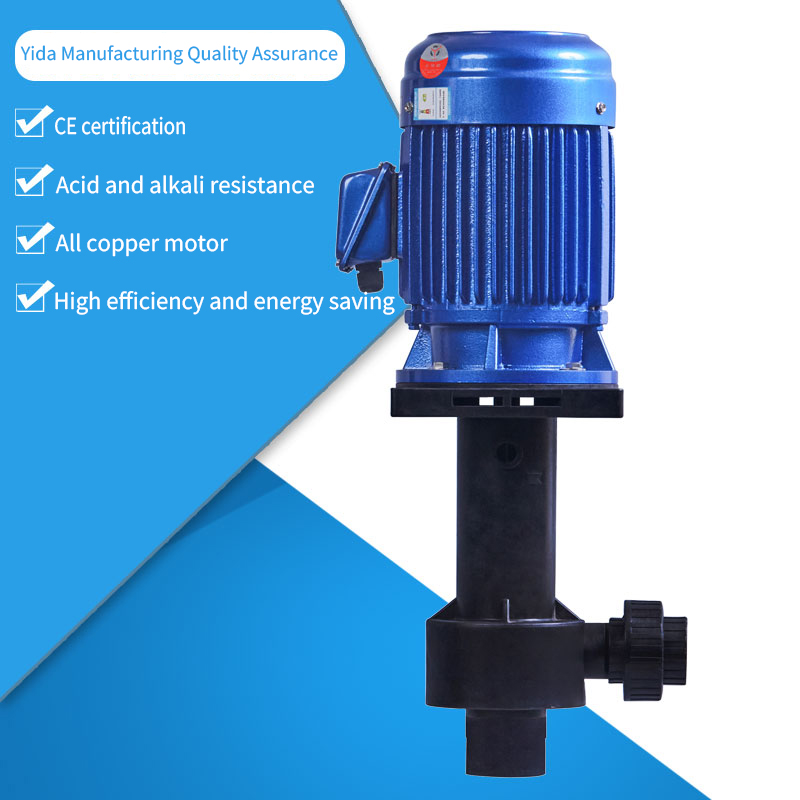

YDN-15SK-1/15 is a high-power acid-resistant vertical pump:
15: 15 HP power (≈11kW) for high-flow industrial use
SK: Specific gravity 1.1, compatible with common chemical liquids；
1/15: High-efficiency motor design.
Key Advantages
Corrosion Resistance & Dry-Running Safety
Wetted parts in FRPP/PVDF, resistant to sulfuric acid, hydrochloric acid, etc. (0°C-90°C)
Dry shaft seal + seal-less structure ensures zero damage during dry-running
High-Flow & Energy Efficiency
Vertical external installation saves space; flow rate 1700 L/min (50Hz), head 36m, ideal for industrial circulation and exhaust treatment
15HP motor reduces energy costs by 15%
Industrial Adaptability
Designed for electroplating tanks, exhaust tower spray, PCB wet processes, and semiconductor cleaning, ensuring stable transfer of aggressive media
