Product Description
YND Specification
| Model | In/outlet | Maximum output | Standard output | Motor | ||||
| YDN-15SK-1/6 | Flow | Head | Flow | Head | Horsepower | Power | Voltage | |
| (mm) | (L/min) | (m) | (L/min) | (m) | (HP) | (KW) | (V) | |
| 20/15 | 40 | 4.5 | 30 | 3 | 1/6 | 0.12 | 220/380 | |
Installing Dimensions

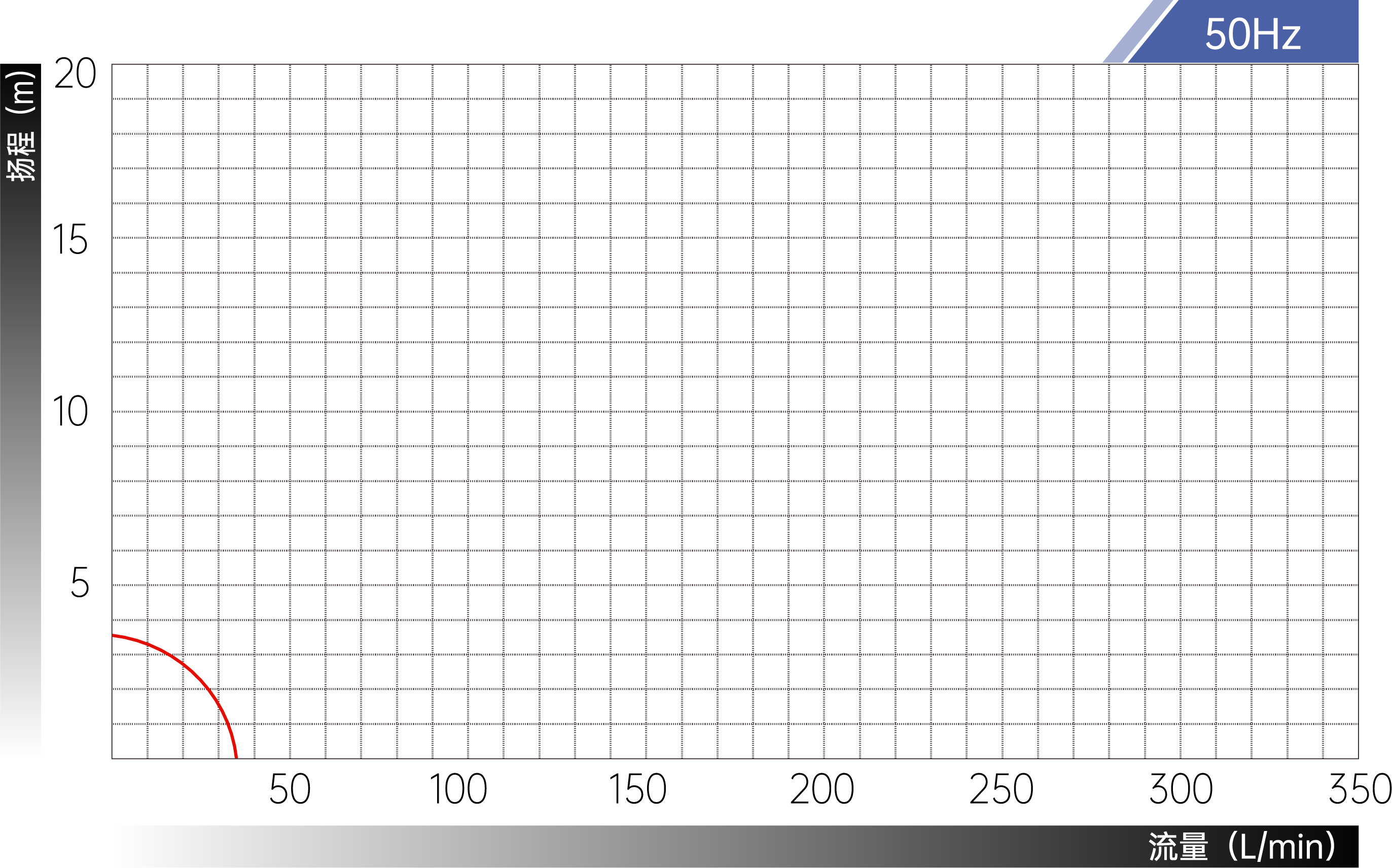

Performance Chart
YDN-15SK-1/6 Vertical Pump
Model Decoding
YDN-15SK-1/6 is a high-efficiency acid-resistant vertical pump:
15: 1/6 HP power (≈120W)
SK: Specific gravity 1.1, for common chemical liquids1
1/6: Six-level energy-efficient motor.
Key Advantages
Corrosion Resistance & Dry-Running
Wetted parts in FRPP/PVDF, resistant to sulfuric acid, hydrochloric acid, etc. (0°C-90°C)
Dry shaft seal + seal-less structure ensures safe dry-running during fluid interruption
Compact & Energy-Saving
Vertical in-tank installation saves 40% space; flow rate 5~70 L/min, head 3~3.8m, ideal for precision dosing
Low power consumption (1/6 HP) cuts annual energy costs by 15%
Industry Applications
Designed for electroplating circulation, semiconductor cleaning, exhaust tower spray, and PCB wet processes, ensuring stable chemical transfer
Specifications
| Parameter | Value |
| Power | 1/6 HP (≈120W) |
| Flow Rate | 5-70 L/min |
| Head | 3-3.8 m |
| Fluid Temp. | 0°C-75°C (FRPP) |
| Seal Material | VITON® Fluororubber |
Manufacturer Note: Upgrade to titanium alloy fasteners for acid concentrations >30% to extend pump life1.
Applications: Electroplating lines · Wafer cleaning · Wastewater dosing systems
