Product Description
YND Specification
| Model | In/outlet | Maximum output | Standard output | Motor | ||||
| YDN-20SK-1/2 | Flow | Head | Flow | Head | Horsepower | Power | Voltage | |
| (mm) | (L/min) | (m) | (L/min) | (m) | (HP) | (KW) | (V) | |
| 40/20 | 100 | 7.5 | 75 | 6 | 1/2 | 1/2 | 220/380 | |
Installing Dimensions

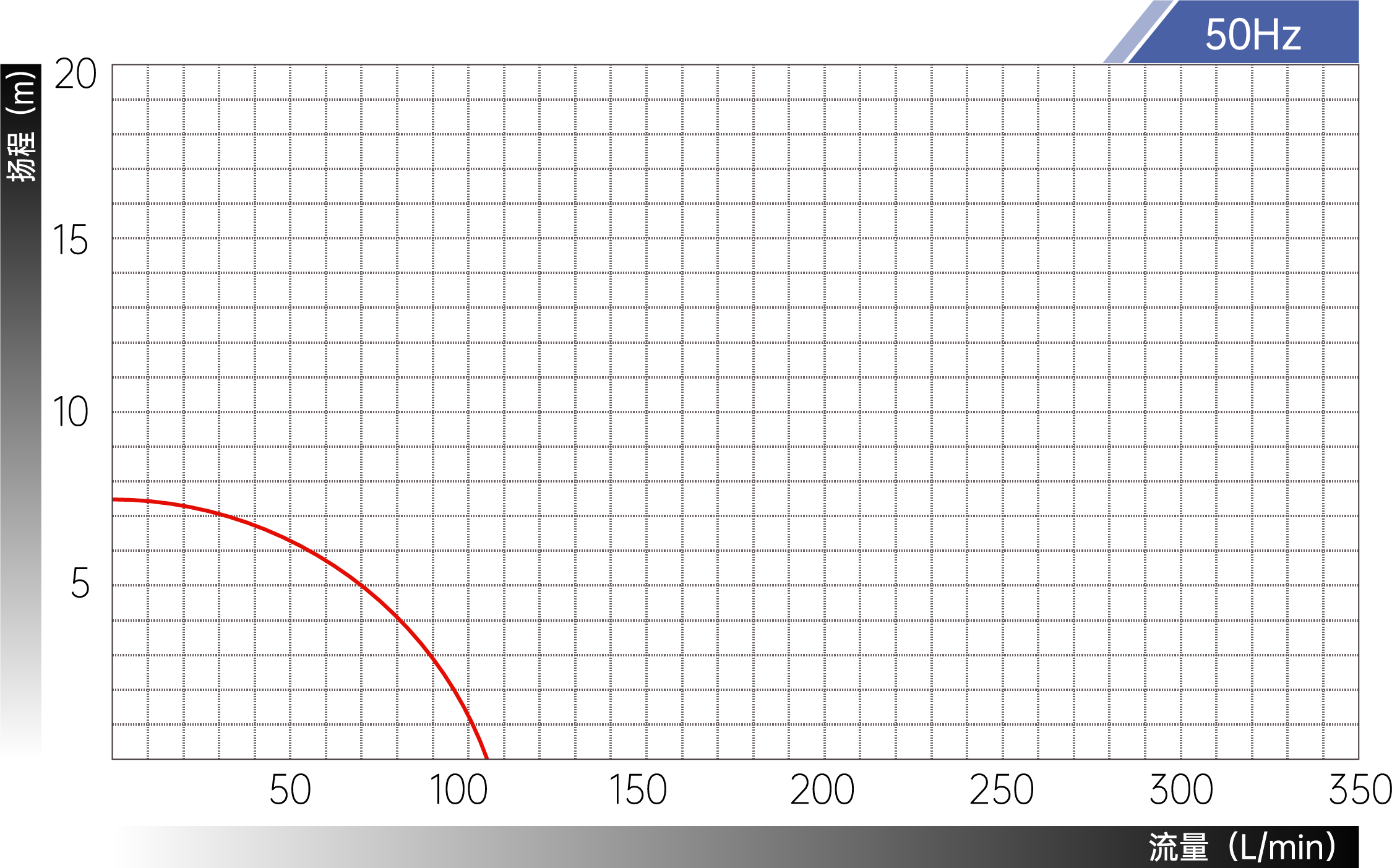

Performance Chart

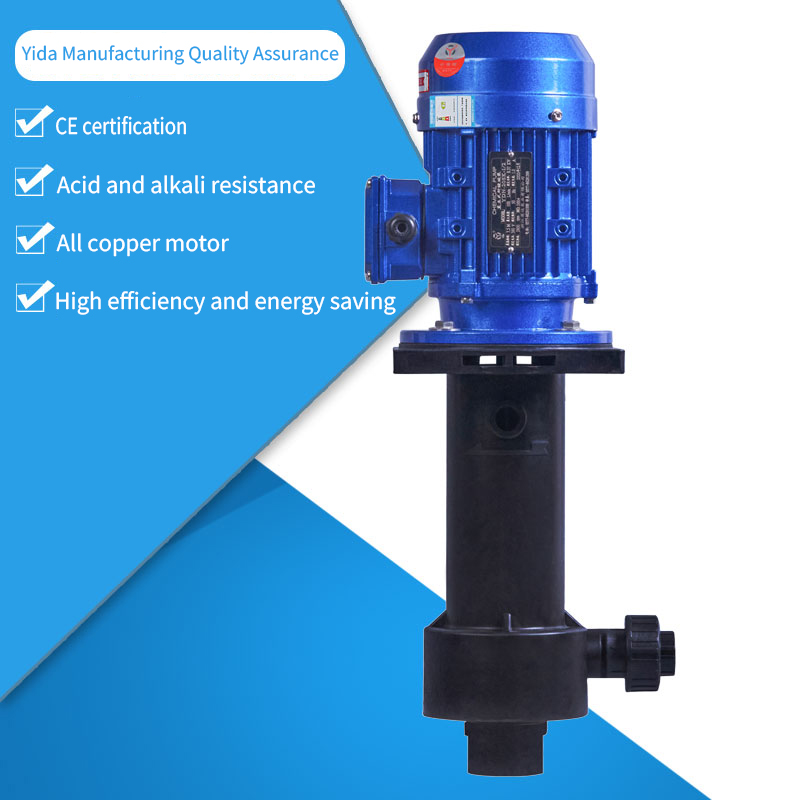

YDN-20SK-1/2 Vertical Pump
The YDN-20SK-1/2 vertical pump delivers robust corrosion resistance and dry-run protection for industrial chemical transfer. Fluoropolymer wetted parts withstand aggressive acids/alkalis, while the seal-less design prevents damage during fluid interruptions. Its high-efficiency motor ensures balanced flow and head performance for medium-duty circulation, with optimized energy consumption. The compact vertical design enables tank immersion or pipeline integration, maximizing space utilization. Critical for stable operation in electroplating tank circulation, exhaust scrubber spray, PCB wet processes, and precision semiconductor cleaning.
| Key Specs | Performance |
| Power Class | High-efficiency |
| Flow Output | Medium-high |
| Head Range | Medium-pressure |
| Temp Tolerance | Broad spectrum |
| Seal Tech | Fluororubber enhanced |
Applications: Chemical transfer · Exhaust treatment · Precision cleaning
